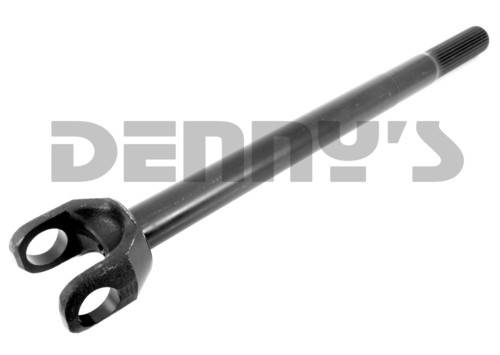

Dana Spicer 10007808 CHROMOLY RIGHT INNER Axle Shaft fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES

Part Number:
10007808

UPC:

023913254339

Your Cost $210.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 10007808

CHROMOLY RIGHT INNER AXLE SHAFT
- 28 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
- Replaces Dana Spicer 29903-1X

Dana Spicer 10007808 CHROMOLY RIGHT INNER Axle Shaft fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $210.95

Dana Spicer 10007808

CHROMOLY RIGHT INNER AXLE SHAFT
- 28 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
- Replaces Dana Spicer 29903-1X

DIMENSIONS

28 SPLINES
Dimension "C1" = 1.20 inch diameter
Dimension "C" = 19.15 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 10007808 CHROMOLY RIGHT INNER Axle Shaft fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES
