Aluminum Driveshafts > 1350 Series CORVETTE ALUMINUM HALF SHAFTS

Denny's AL3.5-8496HS Rear Axle Aluminum Half Shaft 3.5 inch OD Tube for 1984-1996 Corvette C4

Part Number:
AL3.5-8496HS

UPC:

Your Cost $350.95

STATUS: CUSTOM BUILT - 5 WEEK BACKLOG ON NEW ORDERS

Corvette C4 Rear Axle Half Shaft

3.5 inch 6061-T6 Aluminum to fit 1984-1996 Corvette

Same diameter as original Aluminum Half Shafts

PRICE SHOWN is for (1) Half Shaft

Dennys

Denny's AL3.5-8496HS Rear Axle Aluminum Half Shaft 3.5 inch OD Tube for 1984-1996 Corvette C4

Denny's AL3.5-8496HS Rear Axle Aluminum Half Shaft 3.5 inch OD Tube for 1984-1996 Corvette C4

Click for Larger Photo

STATUS: CUSTOM BUILT - 5 WEEK BACKLOG ON NEW ORDERS

YOUR COST: $350.95

OVERSIZE PACKAGE: Sorry ... this item DOES NOT qualify for Free Shipping!

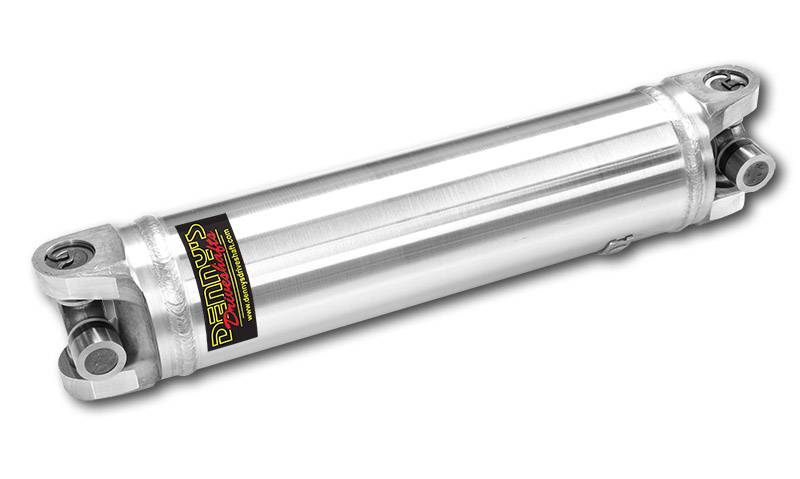

Corvette C4 Rear Axle Half Shaft

1350 series 3.5 inch 6061-T6 ALUMINUM Half Shafts to fit 1984-1996 Corvette

Designed to replace your 3.5 inch original equipment Aluminum half shafts

Complete with Spicer 1350 series solid body maintenance free u-joints. No greasy mess splattered all over that nice Corvette from these u-joints and you can expect very high mileage with no maintenance.
3.5 inch Aluminum tube diameter to match original equipment
All Denny’s Corvette Axle Half Shafts are high speed balanced and come fully assembled for easy installation.
Can be polished beautifully for that show car look.
Dimensions not necessary unless custom length is required
For custom lengths...Please measure as shown below

PRICE SHOWN is for (1) Half Shaft

Measure from CENTER of pressed in cap to CENTER of pressed in cap

Please measure from the exact center of the u-joint cap diameters at each end of the shaft for an accurate center to center overall length dimension to order any half shaft. Please measure the universal joint cap diameter carefully. The 1330 series (usually found on early eighty’s half shafts) will have a 1 1/16th inch (1.062) u-joint cap diameter and the 1350 series (usually found on all years steel or aluminum) will have a 1 3/16th inch (1.187) u-joint cap diameter.

Denny's AL3.5-8496HS Rear Axle Aluminum Half Shaft 3.5 inch OD Tube for 1984-1996 Corvette C4

Denny's AL3.5-8496HS Rear Axle Aluminum Half Shaft 3.5 inch OD Tube for 1984-1996 Corvette C4
