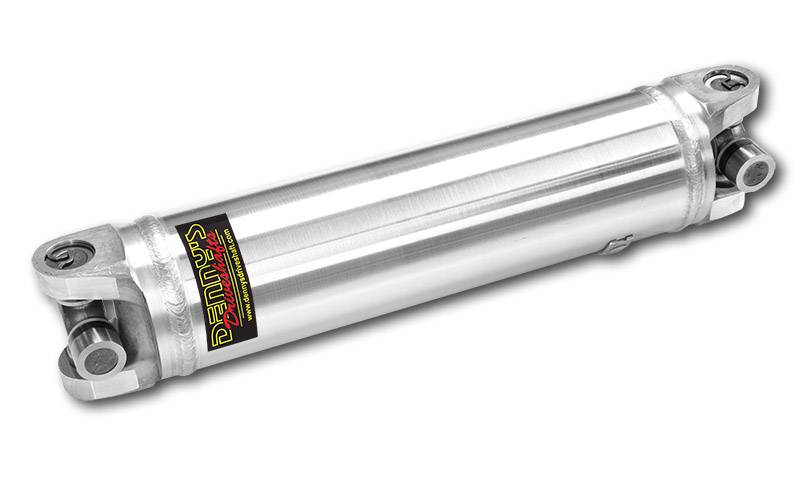

Denny's AL4-8496HS Rear Axle Aluminum Half Shaft 4 inch OD Tube for 1984-1996 Corvette C4
Part Number:
AL4-8496HS


UPC:
Your Cost $375.95
Sorry, sold out
STATUS:  Not available at this time

Corvette C4 Rear Axle Half Shaft

4 inch 6061-T6 Aluminum to fit 1984-1996 Corvette

For High Horsepower Corvettes

Be sure to check clearance for larger diameter tube

PRICE SHOWN is for (1) Half Shaft

Dennys
Denny's AL4-8496HS Rear Axle Aluminum Half Shaft 4 inch OD Tube for 1984-1996 Corvette C4
Denny's AL4-8496HS Rear Axle Aluminum Half Shaft 4 inch OD Tube for 1984-1996 Corvette C4
STATUS:  Not available at this time
YOUR COST:  $375.95

OVERSIZE PACKAGE:  Sorry ... this item DOES NOT qualify for Free Shipping!

Corvette C4 Rear Axle Half Shaft

1350 series 4 inch ALUMINUM Half Shafts to fit 1984-1996 Corvette

Designed for high horsepower applications to help eliminate tube twisting

  • Complete with Spicer 1350 series solid body maintenance free u-joints.
  • 4 inch tube diameter...MUST check clearance for larger tube diameter
  • All Denny’s Corvette Axle Half Shafts are high speed balanced and come fully assembled for easy installation.
  • Dimensions not necessary unless custom length is required
  • For custom lengths...Please measure as shown below

PRICE SHOWN is for (1) Half Shaft


Measure from CENTER of pressed in cap to CENTER of pressed in cap


Please measure from the exact center of the u-joint cap diameters at each end of the shaft for an accurate center to center overall length dimension to order any half shaft. Please measure the universal joint cap diameter carefully. The 1330 series (usually found on early eighty’s half shafts) will have a 1 1/16th inch (1.062) u-joint cap diameter and the 1350 series (usually found on all years steel or aluminum) will have a 1 3/16th inch (1.187) u-joint cap diameter.

Denny's AL4-8496HS Rear Axle Aluminum Half Shaft 4 inch OD Tube for 1984-1996 Corvette C4

Denny's AL4-8496HS Rear Axle Aluminum Half Shaft 4 inch OD Tube for 1984-1996 Corvette C4

You May Also Need These Parts to Complete the Job

Dana Spicer 3-70-48X Strap & Bolt Set 1984-1996 C4 Corvette axle half shafts METRIC BOLTS
$24.99
