Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

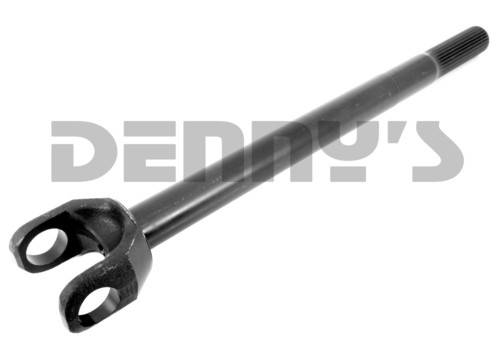

Dana Spicer 10007823 RIGHT INNER Axle Shaft fits 1988 to 1991 Chevy K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 30 SPLINES
Part Number:
10007823


UPC:
023913254315
Your Cost $239.75
STATUS:  IN STOCK - FREE SHIPPING

Dana Spicer 10007823

  • CHROMOLY RIGHT INNER AXLE SHAFT
    • 30 Splines
  • Fits GM 8.5 inch 10 bolt Front Axle
    • Chevy and GMC K10, K15, K20, K25, K30, K35
      • 1988, 1989, 1990, 1991


Spicer
Dana Spicer 10007823 RIGHT INNER Axle Shaft fits 1988 to 1991 Chevy K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 30 SPLINES
Dana Spicer 10007823 RIGHT INNER Axle Shaft fits 1988 to 1991 Chevy K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 30 SPLINES
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $239.75

Dana Spicer 10007823

  • CHROMOLY RIGHT INNER AXLE SHAFT
    • 30 Splines
  • Fits GM 8.5 inch 10 bolt Front Axle
    • Chevy and GMC K10, K15, K20, K25, K30, K35
      • 1988, 1989, 1990, 1991

DIMENSIONS

  • 30 SPLINES
  • Dimension "C1" = 1.20 inch diameter
  • Dimension "C" = 19.15 inches
  • Use with Spicer 5-760X Universal Joint...See bottom of this page
    • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
    • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
