Dana Spicer 10008246 CHROMOLY LEFT INNER Axle Shaft fits 1988 to 1991 Chevy GMC K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 30 SPLINES

Part Number:
10008246

UPC:

023913254322

Your Cost $235.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 10008246

CHROMOLY LEFT INNER AXLE SHAFT
- 30 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC K10, K15, K20, K25, K30, K35
  - 1988, 1989, 1990, 1991

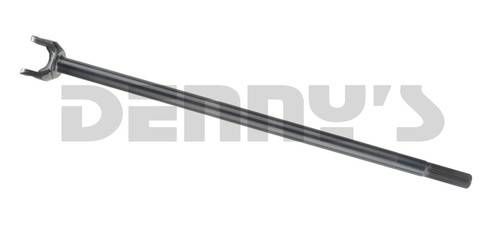

Dana Spicer 10008246 CHROMOLY LEFT INNER Axle Shaft fits 1978 to 1987 Chevy GMC K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 30 SPLINES

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $235.95

Dana Spicer 10008246

CHROMOLY LEFT INNER AXLE SHAFT
- 30 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC K10, K15, K20, K25, K30, K35
  - 1988, 1989, 1990, 1991

DIMENSIONS

30 SPLINES
Dimension "C1" = 1.20 inch diameter
Dimension "C" = 35.5 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 10008246 CHROMOLY LEFT INNER Axle Shaft fits 1978 to 1987 Chevy GMC K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 30 SPLINES
