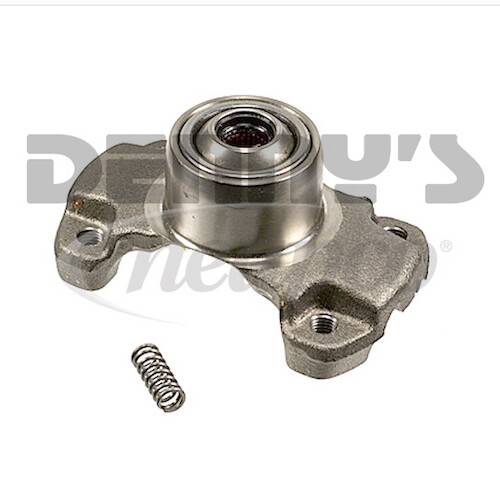

NEAPCO N3-83-019X Ford CV Centering Yoke 1350 Series OEM Non Greaseable

Part Number:
N3-83-019X

UPC:

083869018904

Your Cost $113.95

STATUS: IN STOCK

NEAPCO N3-83-019X

Rear Driveshaft 1350 Series Centering Yoke

OEM Replacement Non Greaseable

Fits Ford Expedition Rear 1350 Series Double Cardan CV Driveshaft with 9.75 inch rear differential
- 1997, 1998, 1999, 2000, 2001, 2002
Fits Lincoln Navigator Rear 1350 Series Double Cardan CV Driveshaft
- 1998

NEAPCO N3-83-019X Ford CV Centering Yoke 1350 Series OEM Non Greaseable

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $113.95

NEAPCO N3-83-019X

Rear Driveshaft 1350 Series Centering Yoke

OEM Replacement Non Greaseable

Fits Ford Expedition Rear 1350 Series Double Cardan CV Driveshaft with 9.75 inch rear differential
- 1997, 1998, 1999, 2000, 2001, 2002
Fits Lincoln Navigator Rear 1350 Series Double Cardan CV Driveshaft
- 1998
Fits Dana Spicer 3-3-5861X Slip yoke to build new 1350 CV double cardan driveshaft
- See bottom of this page for more details

DIMENSIONS

Fits 1350 U-Joint
- (3.625 inches) 3-5/8 inches between locating tabs on centering yoke
- (1.187 inches) 1-3/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.625 inches across u-joint cap
- Bolt hole spacing 2.750 inches side to side
Fits .500 inch stud diameter

INCLUDES

New spring Included

When out of stock Dana Spicer 212019X centering yoke can be used

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot

PLEASE NOTE: This part is not interchangeable with the geaseable centering yoke version. You cannot put this NON Greaseable centering yoke onto a shaft that was originally built for the greaseable centering yoke. The socket diameter is larger and will restrict the movement of the Double Cardan CV Joint.

NEAPCO N3-83-019X Ford CV Centering Yoke 1350 Series OEM Non Greaseable

You May Also Need These Parts to Complete the Job

Neapco 2-0053G universal joint 1350 Series non greaseable 3.622 x 1.188 Part#: 2-0053G $26.55	Dana Spicer 5-178X Greaseable u-joint 1350 Series Part#: 5-178X $20.95
Dana Spicer 5-1350X Universal Joint NON Greaseable 1350 series cold forged solid body heat treated precision ground and case hardened with multi lip seals Part#: 5-1350X $23.54	DANA SPICER 2-86-418 Rubber Boot for Ford OEM Non Greaseable CV Centering Yoke Part#: 2-86-418 $6.85
Dana Spicer 3-3-5861X Double Cardan CV Slip Yoke 1350 series for Borg Warner FORD Transfer Case with 31 spline output Part#: 3-3-5861X $139.25
