DANA 60 FRONT - CHEVY > SPINDLE BEARINGS AND SEALS

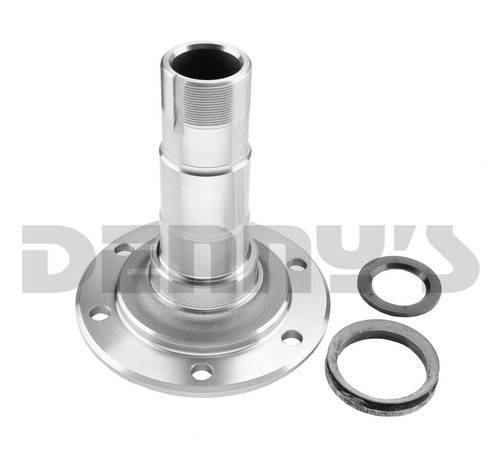

Dana Spicer 10086723 SPINDLE fits 1977 to 1987 CHEVY and GMC K30 with DANA 60 front axle replaces old number 700013

Part Number:
10086723

UPC:

023913640279

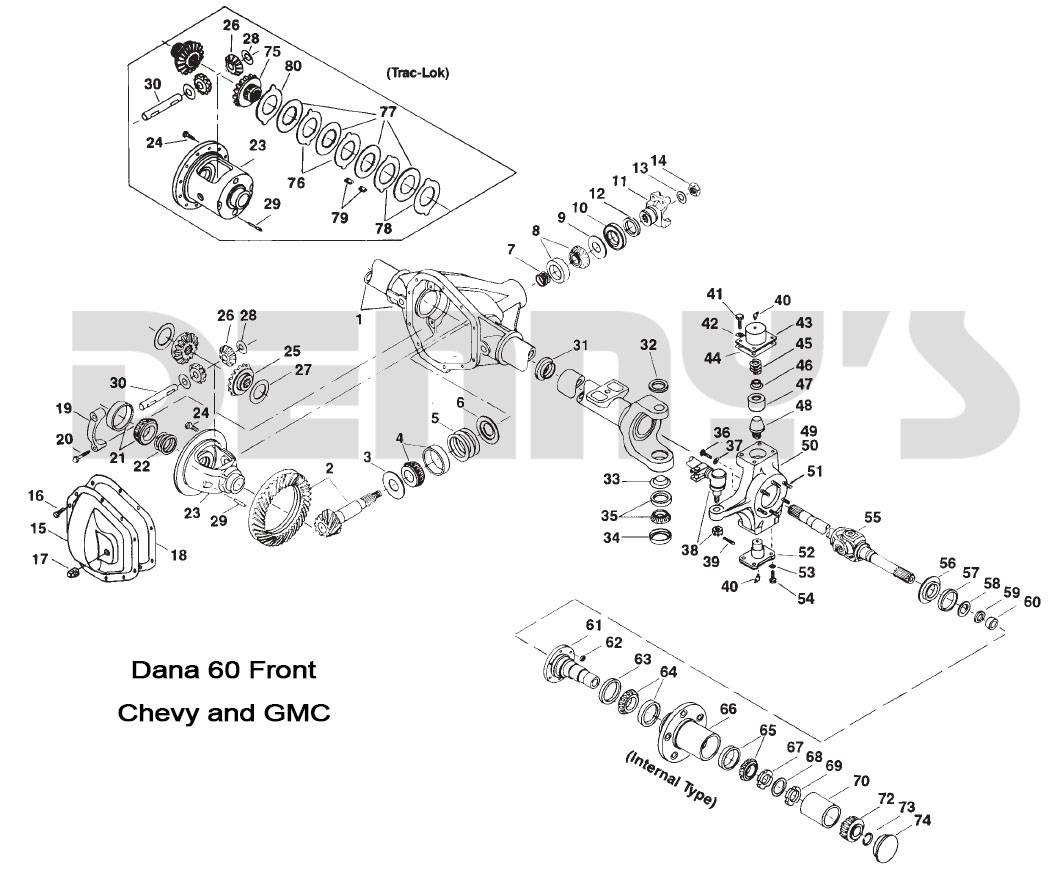

Diagram Number:
61

Your Cost $95.95

STATUS: IN STOCK

DANA SPICER 10086723 replaces old number 700013

SPINDLE with bearing and seal kit
- Comes with 700014 splindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
Fits CHEVY and GMC K30 with DANA 60 front axle
- 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Spicer

Dana Spicer 10086723 SPINDLE fits 1977 to 1987 CHEVY and GMC K30 with DANA 60 front axle replaces old number 700013

Dana Spicer 10086723 SPINDLE fits 1977 to 1987 CHEVY and GMC K30 with DANA 60 front axle replaces old number 700013

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $95.95

DANA SPICER 10086723 replaces old number 700013

SPINDLE with bearing and seal kit
- Comes with 700014 splindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
Fits CHEVY and GMC K30 with DANA 60 front axle
- 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

DIMENSIONS

A = 2 in. OD for Outer Wheel Bearing
B = 2-1/4 in. OD for Inner Wheel Bearing
C = 2-3/4 in. OD for Seal
D = 4-1/2 in.
E = 5/16 in.
F = 5/16 in.
G = 6-7/8 in.
H = 7-1/2 in.
K = 6-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .520 in.
Keyway = .280 in

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts

Dana Spicer 10086723 SPINDLE fits 1977 to 1987 CHEVY and GMC K30 with DANA 60 front axle replaces old number 700013

Dana Spicer 10086723 SPINDLE fits 1977 to 1987 CHEVY and GMC K30 with DANA 60 front axle replaces old number 700013
