Dana Spicer 707043X SPINDLE fits 1980 to 1988 Ford F250, 1981 to 1985 F350, 1986 Bronco and F150, 1989 to 1991 Bronco and F150 with Dana 44 IFS front axle

Part Number:
707043X

UPC:

Diagram Number:

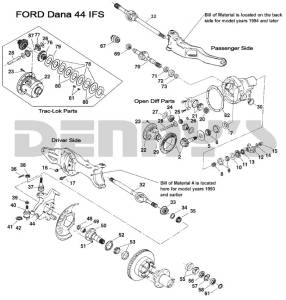

50

Your Cost $227.06

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

DANA SPICER 707043X

SPINDLE
- Replaces old number Dana Spicer 41929

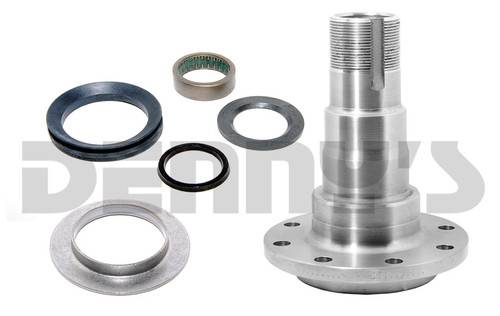

- Comes with Dana Spicer 706527X spindle bearing, spindle seals and 36364 seal retainer
  - Ready to bolt in....Inner spindle needle bearing has been pressed in place at the proper depth
Fits Ford F250 with Dana 44 IFS front axle
- 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Fits Ford F350 with Dana 44 IFS front axle
- 1981, 1982, 1983, 1984, 1985
Fits Ford Bronco with Dana 44 IFS front axle
- 1986
- 1989, 1990, 1991
Fits Ford F150 with Dana 44 IFS front axle
- 1986
- 1989, 1990, 1991

Dana Spicer 707043X SPINDLE fits 1980 to 1988 Ford F250, 1981 to 1985 F350, 1986 Bronco and F150, 1989 to 1991 Bronco and F150 with Dana 44 IFS front axle

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $227.06

DANA SPICER 707043X

SPINDLE
- Replaces old number Dana Spicer 41929
- Comes with Dana Spicer 706527X spindle bearing, spindle seals and 36364 seal retainer
  - Ready to bolt in....Inner spindle needle bearing has been pressed in place at the proper depth
Fits Ford F250 with Dana 44 IFS front axle
- 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988
Fits Ford F350 with Dana 44 IFS front axle
- 1981, 1982, 1983, 1984, 1985
Fits Ford Bronco with Dana 44 IFS front axle
- 1986
- 1989, 1990, 1991
Fits Ford F150 with Dana 44 IFS front axle
- 1986
- 1989, 1990, 1991

DIMENSIONS:

KEYWAY SLOT = .312 in. wide (5/16 inch)
BORE ID = 1.300 inches
A = 1.622 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 1/2 in.
F = 3/8 in.
G = 5-1/8 in.
H = 6 in.
K = 4-3/4 in.
Bolt Holes = 8
Bolt Hole Diameter = .400 in.

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
