DANA 44 FRONT - CHEVY > BEARINGS and SEALS > SPINDLE BEARINGS AND SEALS

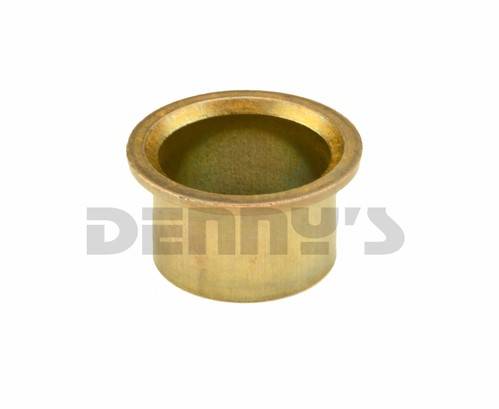

Dana Spicer 30339 BRONZE BUSHING for Chevy front spindle
Part Number:
30339


UPC:
Diagram Number:
52
Your Cost $4.37
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

DANA SPICER 30339

BRONZE BUSHING for spindle

  • Fits early DANA 44 spindles in Chevy, Ford, Dodge, IH that require a bronze/brass bushing inside spindle
    • Later models require a needle bearing. See Dana Spicer 706527X

DIMENSIONS

  • OD at flange = 1.878
  • OD at body = 1.502
  • Thickness at flange =  .105
  • Thickness at body = .065
  • Length to bottom flange = .905
  • ID = 1.377
Spicer
Dana Spicer 30339 BRONZE BUSHING for Chevy front spindle
Dana Spicer 30339 BRONZE BUSHING for Chevy front spindle
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $4.37

DANA SPICER 30339

BRONZE BUSHING for spindle

  • Fits early DANA 44 spindles in Chevy, Ford, Dodge, IH that require a bronze/brass bushing inside spindle
    • Later models require a needle bearing. See Dana Spicer 706527X

DIMENSIONS

  • OD at flange = 1.878
  • OD at body = 1.502
  • Thickness at flange =  .105
  • Thickness at body = .065
  • Length to bottom flange = .905
  • ID = 1.377
Dana Spicer 30339 BRONZE BUSHING for Chevy front spindle

Dana Spicer 30339 BRONZE BUSHING for Chevy front spindle
