Neapco N2-83-599X Double Cardan CV Flange Yoke Greaseable 1310 Series use with N2-81-1181 for NP246 autotrac transfer case

Part Number:
N2-83-599X

UPC:

083869018188

Your Cost $135.95

STATUS: IN STOCK - FREE SHIPPING

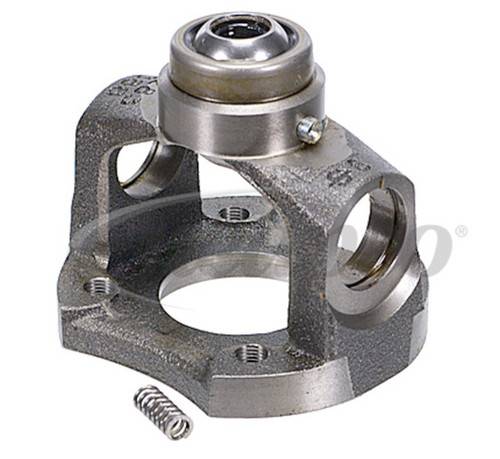

NEAPCO N2-83-599X

Double Cardan CV Flange Yoke
- 1310 series
- Greaseable
- Use with N2-81-1181 splined shaft to build Front CV driveshaft for NP246 Autotrac transfer case
BOLT CIRCLE: 3.00
FLANGE FACE TO CL: 1.62
HOLE/THREAD SIZE: 0.375-24
NUMBER OF BOLT HOLES: 4
PILOT DIAMETER: 2.00-Female
STUD SOCKET DIMENSION: 0.50

Designed for use with a 1310 series GREASEABLE CV Ball Stud yoke ONLY

Neapco N2-83-599X Double Cardan CV Flange Yoke Greaseable 1310 Series use with N2-81-1181 for NP246 autotrac transfer case

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $135.95

NEAPCO N2-83-599X

Double Cardan CV Flange Yoke
- 1310 series
- Greaseable
- Use with N2-81-1181 splined shaft to build Front CV driveshaft for NP246 Autotrac transfer case
BOLT CIRCLE: 3.00
FLANGE FACE TO CL: 1.62
HOLE/THREAD SIZE: 0.375-24
NUMBER OF BOLT HOLES: 4
PILOT DIAMETER: 2.00-Female
STUD SOCKET DIMENSION: 0.50

Designed for use with a 1310 series GREASEABLE CV Ball Stud yoke ONLY

Neapco N2-83-599X Double Cardan CV Flange Yoke Greaseable 1310 Series use with N2-81-1181 for NP246 autotrac transfer case
