DANA 60 FRONT - FORD 1975 to 2004 > AXLE PARTS > SEALS > TUBE SEALS - INNER

DANA SPICER 2019816 INNER TUBE Seal fits Dana 60 in 1993 to 1998 Ford F-350 replaces 48773
Part Number:
2019816


UPC:
023913445430

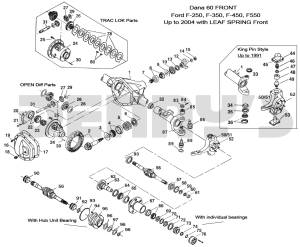

Diagram Number:
32
Your Cost $19.95
STATUS:  IN STOCK

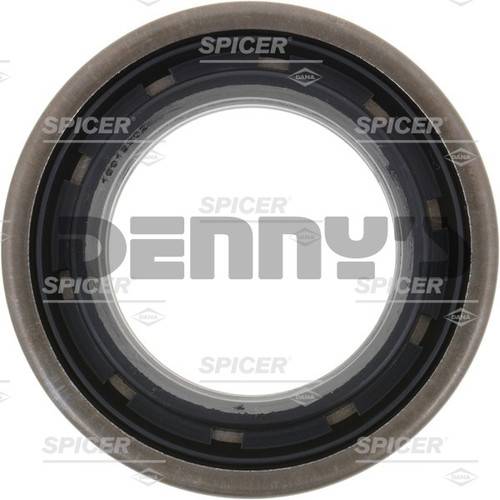

DANA SPICER 2019816

DANA 60 Solid Front Axle INNER TUBE Seal

Fits both RIGHT SIDE and LEFT SIDE

  • Fits FORD F350 with DANA 60 solid front axle
    • 1993, 1994, 1995, 1996, 1997, 1998
  • 2019816 Replaces obsolete Dana Spicer part numbers 48773 and 52148
  • Used primarily on Dana 60 with BOM numbers 610432, 610445, 610460, 610610, 610741

INSTALLATION TIP:

When you receive the seal you will see the outside diameter has a metal casing with a rubber edge on one side.

  • The rubber edge of the seal OD is facing the gears.
  • The metal edge of the seal OD is facing the tires.
    • On the metal edge side of the seal.... the ID of the rubber seal is slightly beveled so that the axle shaft can enter it easier.

Hope this helps!

Spicer
DANA SPICER 2019816 INNER TUBE Seal fits Dana 60 in 1993 to 1998 Ford F-350 replaces 48773
DANA SPICER 2019816 INNER TUBE Seal fits Dana 60 in 1993 to 1998 Ford F-350 replaces 48773
Click for Larger Photo
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $19.95

DANA SPICER 2019816

DANA 60 Solid Front Axle INNER TUBE Seal

Fits both RIGHT SIDE and LEFT SIDE

  • Fits FORD F350 with DANA 60 solid front axle
    • 1993, 1994, 1995, 1996, 1997, 1998
  • 2019816 Replaces obsolete Dana Spicer part numbers 48773 and 52148
  • Used primarily on Dana 60 with BOM numbers 610432, 610445, 610460, 610610, 610741

INSTALLATION TIP:

When you receive the seal you will see the outside diameter has a metal casing with a rubber edge on one side.

  • The rubber edge of the seal OD is facing the gears.
  • The metal edge of the seal OD is facing the tires.
    • On the metal edge side of the seal.... the ID of the rubber seal is slightly beveled so that the axle shaft can enter it easier.

Hope this helps!
