-- 4.25 inch Bolt Circle with 2 inch Pilot

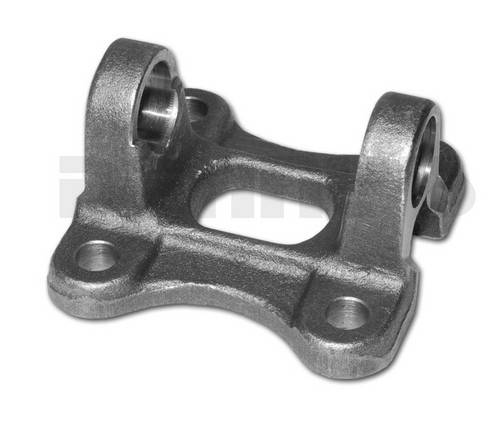

Neapco N2-2-1369 FLANGE YOKE 1330 series fits Ford 8.8 inch Rear Ends LARGE BOLT PATTERN Replaces OEM E9TZ4782B

Part Number:
N2-2-1369

UPC:

083869018706

Your Cost $49.95

STATUS: IN STOCK

NEAPCO N2-2-1369

Replaces Dana Spicer 2-2-1369

Replaces Ford OEM E9TZ4782B

1330 Series Ford Flange Yoke to fit 8.8 inch rear ends with LARGE Bolt Pattern. Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

Neapco N2-2-1369 FLANGE YOKE 1330 series fits Ford 8.8 inch Rear Ends LARGE BOLT PATTERN Replaces Ford OEM E9TZ4782B

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $49.95

NEAPCO N2-2-1369

Replaces Dana Spicer 2-2-1369

Replaces Ford OEM E9TZ4782B

1330 Series Ford Flange Yoke to fit 8.8 inch rear ends with LARGE Bolt Pattern.

Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

X = 3 inches
Y = 3 inches
C = Center Pilot Hole Diameter is 2.0 inches
1330 series
- 3.625 between snap rings (3 5/8 inches)
- D = 1.062 bearing cap diameter (1 1/16 inches)

Flange Yokes - Flange Yokes	Model/Part #: N2-2-1369
A.) Flange or Swing Dia.	5.250
B) Bolt Circle Dia.	4.250
Bolt Hole Dia. (NOM)	.500-D
Number of Bolt Holes	4
C) Pilot Dia. M=male F=female	2.000-F
G) Flange Face to C/L	1.625

Denny's Driveshafts Flange Yoke Dimension Diagram

Neapco N2-2-1369 FLANGE YOKE 1330 series fits Ford 8.8 inch Rear Ends LARGE BOLT PATTERN Replaces Ford OEM E9TZ4782B
Click Here to Enlarge	Click Here to Enlarge
