Dana Spicer 2-2-1379 LARGE Bolt Pattern 1310 Series Flange Yoke fits Ford 8.8 inch Rear Ends

Part Number:
2-2-1379

UPC:

023913229436

Your Cost $54.95

STATUS: IN STOCK

Dana Spicer 2-2-1379

1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern. Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

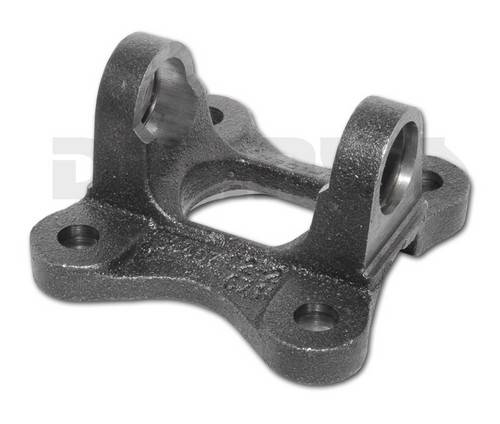

Dana Spicer 2-2-1379 Flange Yoke 1310 series FORD

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $54.95

Dana Spicer 2-2-1379

1310 Series Ford Flange Yoke to fit Ford 8.8 inch rear ends with Large Bolt Pattern. Designed for the LARGE Ford bolt pattern typically found on Full Size Ford Cars, Light Trucks and Cobra Mustang 8.8 rear ends.

A - Flange or Swing Diameter = 5.219 inches
B - Bolt Circle Diameter = 4.25 inches
- Bolt Hole Diameter = .484 inches
- Bolt Holes = 4
- Bolt Holes = Drilled
C - Center Pilot Hole Diameter = 2.0 inches
- Center Pilot Hole = Female
Series = 1310
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.219 inches (3 7/32 inches)
- D - U-Joint Bearing cap diameter = 1.062 inches (1 1/16 inches)
G - Center of u-joint bore to Face of flange = 1.625 inches
X - FORD LARGE Bolt pattern = 3 inches
Y - FORD LARGE Bolt pattern = 3 inches

Denny's Driveshafts Flange Yoke Dimension Diagram

Dana Spicer 2-2-1379 Flange Yoke 1310 series FORD

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
42-1855 Set of 4 Bolts M12-1.75 for Pinion Flange fits FORD 8.8 inch Rear Ends - 12 point 12mm bolt set Part#: 42-1855 $11.95	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95

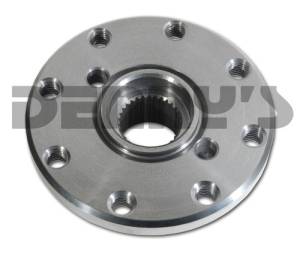

FORD DL3Z-4851-A Pinion Flange 2 inch pilot 4.25 inch bolt circle 30 splines fits Ford 8.8 inch car and light truck rear ends up to 2004 Part#: DL3Z4851A $125.95
