Dana Spicer 2-2-949 Flange Yoke 1330 series fits 7.5 and 8.8 inch Rear Ends with 3.5 inch bolt circle E8VY4782A

Part Number:
2-2-949

UPC:

023913229948

Your Cost $1.00

Sorry, sold out

STATUS: Discontinued Item...See other choices listed

DANA SPICER 2-2-949

Same as OEM FORD E8VY4782A

1330 Series Ford Flange Yoke to fit 7.5 inch and 8.8 inch rear ends. Designed for the SMALL Ford bolt pattern typically found on most Ford and Mustang 7.5 and 8.8 rear ends.

Dana Spicer 2-2-949 Flange Yoke 1330 series fits 7.5 and 8.8 inch Rear Ends with 3.5 inch bolt circle E8VY4782A

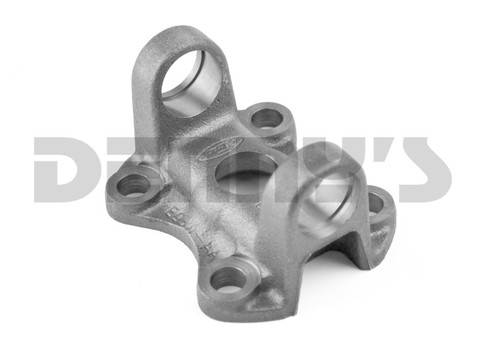

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: Discontinued Item...See other choices listed

YOUR COST: $1.00

>>>>> FINAL SALE: This part number is a Final Sale ITEM. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

DANA SPICER 2-2-949

Same as OEM FORD E8VY4782A

1330 Series Ford Flange Yoke to fit 7.5 inch and 8.8 inch rear ends. Designed for the SMALL Ford bolt pattern typically found on most Ford and Mustang 7.5 and 8.8 rear ends.

FORD SMALL Bolt pattern = 2.5 inches by 2.5 inches
Bolt Circle Diameter = 3.5 inches
Center Pilot Hole Diameter is 2.0 inches
1330 series
- 3.625 inches between snap rings
- 1.062 inch bearing cap diameter

Flange Yokes - Flange Yokes	Model/Part #: 2-2-949
A.) Flange or Swing Dia.	4.469
B) Bolt Circle Dia.	3.500
Bolt Hole Dia. (NOM)	.484-D
Number of Bolt Holes	4
C) Pilot Dia. M=male F=female	2.000-F
G) Flange Face to C/L	1.625
Figure	1

Dana Spicer 2-2-949 Flange Yoke 1330 series fits 7.5 and 8.8 inch Rear Ends with 3.5 inch bolt circle E8VY4782A
