CHEVY & GMC 4x4 3R Series Double Cardan CV Flange Yoke

Part Number:
N3R-83-482

UPC:

083869000039

Your Cost $95.94

STATUS: IN STOCK

Double Cardan CV Flange Yoke 3R Series to replace original equipment Chevy and GMC 4x4 CV Flange Yoke. Use this to replace your worn out CV flange yoke.

Comes with ball socket centering parts already installed for easy installation.

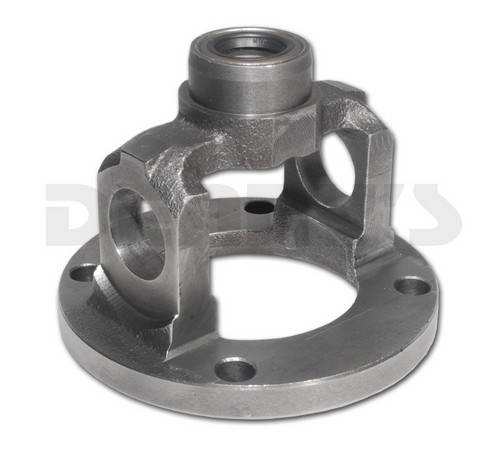

CHEVY & GMC 4x4 3R Series Double Cardan CV Flange Yoke

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $95.94

Double Cardan CV Flange Yoke 3R Series to replace original equipment Chevy and GMC 4x4 CV Flange yoke. This yoke is used to replace the 4x4 double cardan CV Flange yoke located on the Front Driveshaft of a 4x4 Chevy or GMC original equiment driveshaft. Also fits Buick, Pontiac, Chevrolet, Oldsmobile and Cadillac car driveshafts where double cardan CV style is used on original equipment. CV Flange yoke comes complete with ball socket centering parts already loaded. Bolt pattern for mounting to rear differential flange is 4 1/4 inches (4.250 inches) measured diagonally and the pilot hole in the center of the flat flange is 3 1/8 inches (3.125 inches). It has 4 equally spaced holes that measure 3 inches from center of hole to center of hole.

GM 3R Series Double Cardan CV Flange Yoke
Bolt Pattern.... 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter... 3.125 inches (3 1/8 inches)
Typically found on early GM cars with double cardan style CV driveshaft and also GM 4x4 Front Driveshafts 1973 and newer
Requires Inside "C" Clip style 3R Series u-joints listed below
Centering ball socket comes fully assembled and ready to install

CHEVY & GMC 4x4 3R Series Double Cardan CV Flange Yoke

You May Also Need These Parts to Complete the Job

SPICER 5-3147X 3R Series U-joint Greaseable Part#: 5-3147X $19.25	Dana Spicer 5-795X Universal Joint 3R Series Non greaseable Part#: 5-795X $27.95
NEAPCO N3R-26-057 Chevy and GMC 4X4 1978 to 1991 3R Series OEM Replacement Double Cardan CV center "H" Yoke for inside "C" clip u-joints Part#: N3R-26-057 ~~$65.47~~ $62.35
