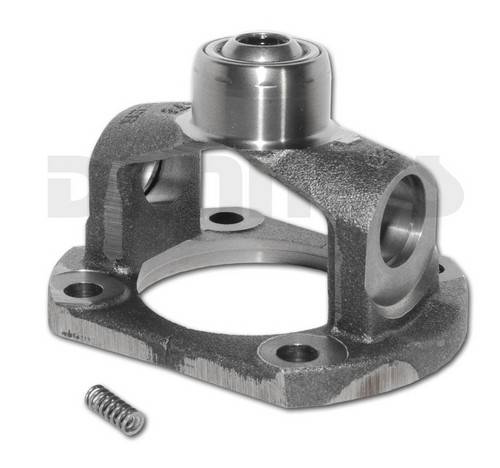

NEAPCO N2-83-913X Double Cardan CV Flange Yoke 1330 series fits 95 to 05 DODGE Ram 1500, 2500 with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange

Part Number:
N2-83-913X

UPC:

083869018645

Your Cost $92.95

STATUS: IN STOCK

NEAPCO N2-83-913X

DODGE 1995 to 2005 Ram 1500 and 2500 Double Cardan CV Flange Yoke 1330 Series.

Non Greaseable Maintenance Free design.

NEAPCO N2-83-913X Double Cardan CV Flange Yoke 1330 series fits 95 to 05 DODGE Ram 1500, 2500 with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $92.95

NEAPCO N2-83-913X

DODGE 1995 to 2005 Ram 1500 and 2500 Double Cardan CV Flange Yoke 1330 Series.

Non Greaseable Maintenance Free design.

Fits Dodge Front Driveshaft with Spicer style Double Cardan CV with outside snap ring universal joints

Use this CV flange yoke to attach a 1330 Series Double Cardan CV driveshaft to a Dodge 4x4 Transfer Case.

1330 Series Double Cardan CV Flange Yoke
Use with 1330 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Maintenance Free
Comes with New Spring included
Bolt Pattern.... 4.25 inches measured diagonally
Pilot Diameter... 3.125 inches (3 1/8 inches)
Bearing cap diameter is 1.062 (1 1/16th) for all 1330 series CV Flange yokes
Centering Yoke Fits 1330 Series Universal Joint
- Dimension between snap rings on centering yoke is (3.625 inches) 3 5/8 inches
- Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot.

NEAPCO N2-83-913X Double Cardan CV Flange Yoke 1330 series fits 95 to 05 DODGE Ram 1500, 2500 with 4.25 inch bolt circle and 3.125 inch pilot on transfer case flange
Click Here to Enlarge	Click Here to Enlarge
