NEAPCO N2-83-631X Double Cardan CV Flange Yoke NON Greaseable 1330 series fits FORD Bronco, F150, F250, F350 with 4.25 inch bolt circle and 2 inch pilot on transfer case output flange

Part Number:
N2-83-631X

UPC:

083869018638

Your Cost $109.74

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N2-83-631X

FORD Bronco, F150, F250, F350 Double Cardan CV Flange Yoke 1330 Series.
Non Greaseable Maintenance Free design.
Mounts to Ford Double Cardan CV style transfer case flange with a 4.25 inch bolt circle and 2 inch pilot
- Use this CV flange yoke to attach a 1330 Series Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.
Designed for use with a 1330 series NON GREASEABLE CV Ball Stud yoke ONLY

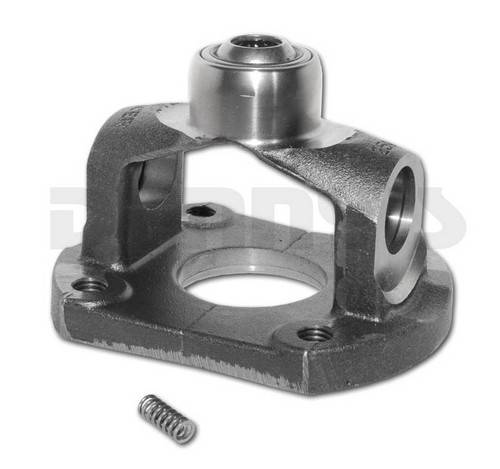

NEAPCO N2-83-631X Double Cardan CV Flange Yoke NON Greaseable 1330 series fits FORD Bronco, F150, F250, F350 with 4.25 inch bolt circle and 2 inch pilot on transfer case output flange

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $109.74

NEAPCO N2-83-631X

FORD Bronco, F150, F250, F350 Double Cardan CV Flange Yoke 1330 Series.
NON GREASEABLE Maintenance Free design.
Mounts to Ford Double Cardan CV style transfer case flange with a 4.25 inch bolt circle and 2 inch pilot
- Use this CV flange yoke to attach a 1330 Series Double Cardan CV driveshaft to a Ford 4x4 Transfer Case.
- Mounting holes are threaded to accept OEM Ford bolts
- Designed for use with a 1330 series NON GREASEABLE CV Ball Stud yoke ONLY

Use with 1330 Series U-Joints listed below.
Needle Bearing Ball Socket fits 1/2 inch stud yoke
Comes with New Spring included
Bolt Pattern.... 4.25 inches measured diagonally
Pilot Diameter... 2 inches
This Centering Yoke Fits 1330 Series Universal Joint
- Dimension between snap rings on centering yoke is (3.625 inches) 3 5/8 inches
- Designed to fit (1.062 inches) 1 1/16 inch U-Joint Bearing cap

It is recommended that you install a new rubber boot every time you service the Double Cardan CV joint.

Please see the bottom of this page for new rubber boot.

NEAPCO N2-83-631X Double Cardan CV Flange Yoke NON Greaseable 1330 series fits FORD Bronco, F150, F250, F350 with 4.25 inch bolt circle and 2 inch pilot on transfer case output flange
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

42-1855 BOLT Set M12-1.75 for Ford Transmission/Transfer Case Flange - 12mm 12 point bolt set Part#: 42-1855 $11.95	NEAPCO 2-4800 - 1330 Series Greaseable Universal Joint Part#: 2-4800 ~~$18.25~~ $17.38
DE-15688 Installation Tool for use with Rubber Boot Part Number 2-86-418 Part#: DE-15688 $32.95	Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19
DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77	Ford CV H Yoke 1330 Series Part#: N2-26-527 ~~$51.40~~ $48.95
DANA SPICER 2-86-418 Rubber Boot for OEM Non Greaseable CV Centering Yoke Part#: 2-86-418 $6.85
