6252906CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series with GREASABLE U-Joints fits 1978 to 1991 Chevy GMC K5, Blazer, Jimmy, K10, K15, K20, K25, K30 K35 CV Front Driveshaft

Part Number:
6252906CV

UPC:

Your Cost $216.25

STATUS: IN STOCK - FREE SHIPPING

Part Number 6252906CV

3R Series Double Cardan CV Head

Fits Chevy GMC K5, Blazer, Jimmy, K10, K15, K20, K25, K30 K35 with 3R series double cardan CV FRONT DRIVESHAFT
- 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

This unit is fully assembled and ready to install onto your existing driveshaft. ....all you need to do is install one u-joint into your CV Ball Stud yoke to install this assembly

It's as easy as changing one u-joint. Please be sure to measure the bolt pattern and pilot hole diameter prior to ordering.
Use this to replace the GM 3R series double cardan CV on your Front Driveshaft

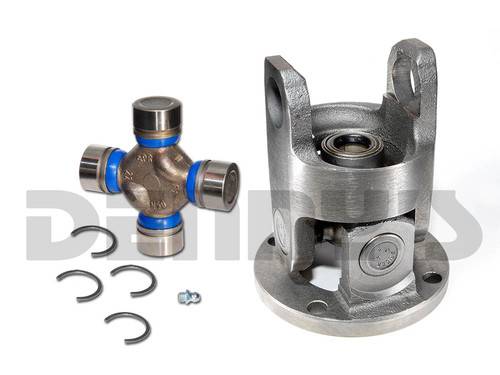

KIT INCLUDES

(2) Spicer 5-3147X Greasable 3R Series Universal Joints
(1) NEAPCO N3R-26-057 "H" Yoke
(1) NEAPCO N3R-83-482 CV Flange yoke with ball socket parts installed

DIMENSIONS

Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter = 3.125 inches (3 1/8 inches)
4 bolt holes equally spaced 3 inches center to center
INSIDE "C" Clip style

6252906CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series with GREASABLE U-Joints fits 1978 to 1991 Chevy GMC K5, Blazer, Jimmy, K10, K15, K20, K25, K30 K35 CV Front Driveshaft

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $216.25

Part Number 6252906CV

3R Series Double Cardan CV Head

Fits Chevy GMC K5, K10, K15, K20, K25, K30 K35 with 3R series double cardan CV FRONT DRIVESHAFT
- 1978, 1979, 1980, 1981, 1982,1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

This unit is fully assembled and ready to install onto your existing driveshaft. ....all you need to do is install one u-joint into your CV Ball Stud yoke to install this assembly

It's as easy as changing one u-joint. Please be sure to measure the bolt pattern and pilot hole diameter prior to ordering.
Use this to replace the GM 3R series double cardan CV on your Front Driveshaft

KIT INCLUDES

(2) Spicer 5-3147X Greasable 3R Series Universal Joints
(1) NEAPCO N3R-26-057 "H" Yoke
(1) NEAPCO N3R-83-482 CV Flange yoke with ball socket parts installed

DIMENSIONS

Bolt Circle = 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter = 3.125 inches (3 1/8 inches)
4 bolt holes equally spaced 3 inches center to center
INSIDE "C" Clip style

6252906CV Double Cardan CV Head assembly INSIDE "C" Clip GM 3R series with GREASABLE U-Joints fits 1978 to 1991 Chevy GMC K5, Blazer, Jimmy, K10, K15, K20, K25, K30 K35 CV Front Driveshaft
