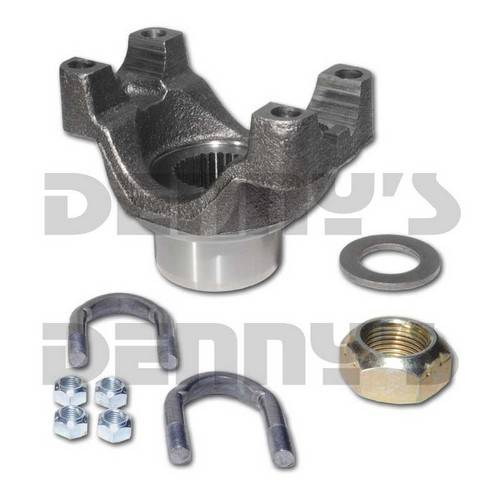

9566266 Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion U-BOLT Style
Part Number:
9566266


UPC:
Your Cost $138.55 Sale Price $125.95
You Save $12.60
STATUS:  IN STOCK - FREE SHIPPING

9566266

  • PINION YOKE - CAST
  • Fits ALL Dana 60, 61, 70 with 29 spline pinion
  • 1350 series
  • U-Bolt style
9566266 Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion U-BOLT Style
9566266 Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion U-BOLT Style
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $138.55 Sale Price $125.95
You Save $12.60

9566266

  • PINION YOKE - CAST
  • Fits ALL Dana 60, 61, 70 with 29 spline pinion
  • 1350 series
  • U-Bolt Style - u-bolt set included
  • Pinion nut and washer included

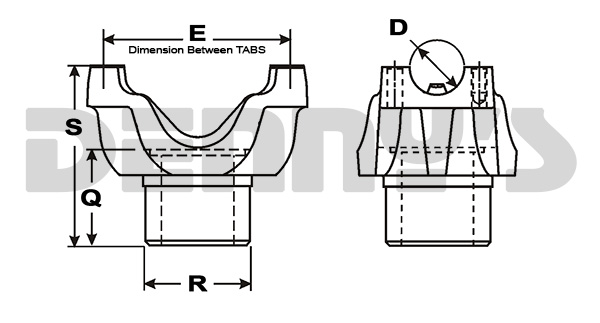

DIMENSIONS

  • 29 SPLINE
  • SPLINE OD = 1.276
  • D = 1.188
  • E = 3.625
  • Q = 1.500
  • R = 1.875
  • S = 3.000

Fits 1350 series u-joint 3.625 inches (3 5/8) wide with 1.188 inches (1 3/16) bearing cap diameter

image/jpeg
9566266 Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion U-BOLT Style

9566266 Pinion Yoke 1350 series fits all Dana 60, 61, 70 with 29 spline pinion U-BOLT Style

You May Also Need These Parts to Complete the Job

Dana Spicer 42449 Pinion Seal fits Chevy, GMC, Ford, Dodge with Dana 60
$7.59
