Chevrolet > 4X4 TRUCKS > CV Parts - Yokes - U-Joints - Hardware > FLANGE YOKES

Neapco N3R-2-8268 Flange Yoke fits GM 3R Series Driveshaft INSIDE "C" Clip style

Part Number:
N3R-2-8268

UPC:

083869015132

Your Cost $72.86

Sorry, sold out

STATUS: DISCONTINUED ITEM

NEAPCO N3R-2-8268

Flange Yoke 3R Series

3R Series Flange yoke ...Use with 3R Series U-Joints listed below.
Bolt Pattern.... 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter... 3.125 inches (3 1/8 inches) female pilot
CL of u-joint to mounting surface of flange....1.69 inches
INSIDE Snap Ring Style

1978 and newer Chevy and GMC 4x4 truck front driveshaft

Can be used to build a 3R series NON CV front driveshaft and eliminate the 3R series Double Cardan CV front driveshaft on 1978 and newer Chevy and GMC 4x4 trucks
NOT recommended for trucks with a lifted suspension. U-joint angle may be too severe and bind up on lifted trucks causing breakage.

Neapco

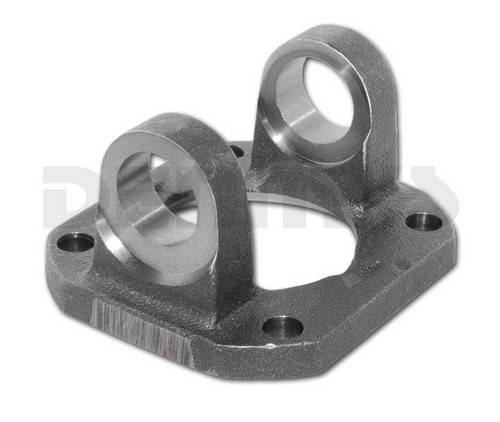

Neapco N3R-2-8268 Flange Yoke fits GM 3R Series Driveshaft INSIDE "C" Clip style

Neapco N3R-2-8268 Flange Yoke fits GM 3R Series Driveshaft INSIDE "C" Clip style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: DISCONTINUED ITEM

YOUR COST: $72.86

NEAPCO N3R-2-8268

Flange Yoke 3R Series

3R Series Flange yoke ...Use with 3R Series U-Joints listed below.
Bolt Pattern.... 4.25 inches (4 1/4 inches) measured diagonally
Pilot Diameter... 3.125 inches (3 1/8 inches) female pilot
CL of u-joint to mounting surface of flange....1.69 inches
INSIDE Snap Ring Style

1978 and newer Chevy and GMC 4x4 truck front driveshaft

Can be used to build a 3R series NON CV front driveshaft and eliminate the 3R series Double Cardan CV front driveshaft on 1978 and newer Chevy and GMC 4x4 trucks
NOT recommended for trucks with a lifted suspension. U-joint angle may be too severe and bind up on lifted trucks causing breakage.

image/jpeg

Neapco N3R-2-8268 Flange Yoke fits GM 3R Series Driveshaft INSIDE "C" Clip style
Click Here to Enlarge	Click Here to Enlarge

You May Also Need These Parts to Complete the Job

4289-716 Set of 4 grade 8 CV Flange Bolts 7/16 - 14 coarse thread and 4 lock washers Part#: 4289-716 $5.95	SPICER 5-3147X 3R Series U-joint Greaseable Part#: 5-3147X $19.25
Dana Spicer 5-795X Universal Joint 3R Series Non greaseable Part#: 5-795X $27.95
