Street Rod Driveshafts > ALUMINUM Street Rod Driveshafts with 1310 Slip Yoke > 3.0 inch Tube 55 inch max length

Denny's STR-3A

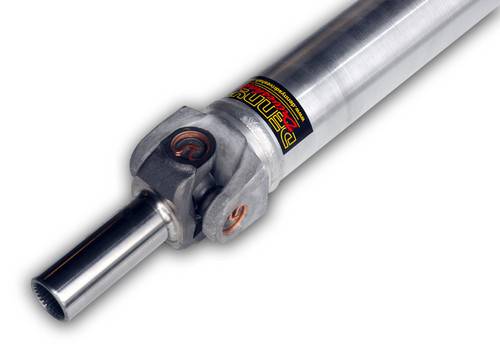

Street Rod Driveshaft 3 inch ALUMINUM with 1310 Slip Yoke

• Recommended for use with less than 500 horsepower.
• This driveshaft is available in 1310 series ONLY

Includes:

• 3 inch Diameter Tube - 6061-T6 ALUMINUM
  • All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
• Spicer or Neapco 1310 series SLIP YOKE
  • Available to fit 26 spline Chrysler 904 automatic and 26 spline manual transmission
  • Available to fit all 27 and 32 spline GM automatic transmissions
  • Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
  • Available to fit 28 spline Ford C4 and AOD automatics (NOT available in 1310 for 4R70W see 1330 shafts)
  • Available to fit 28 spline T5, T10, Top Loader, Tremec
  • Available to fit 31 spline Ford C6, FMX, Top Loader, Tremec
• Dana Spicer NON Greaseable Universal Joints
  • FRONT universal joint 1310 series to match slip yoke

  • REAR universal joint 1310 series to match your 1310 series rear end pinion yoke.
    • ***Flat Flange Yoke option available for Ford 8.8 and JAG rear
    • ***Please be sure to add the correct flange yoke to the shopping cart when placing your order
• All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation.  This is priceless when it comes to customer satisfaction!
• All Denny's Driveshafts come Fully Assembled and ready to bolt in!

•
  • Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
    • Please see our Free Lifetime Labor page for details. CLICK HERE


HOW TO MEASURE

You have 2 choices ...see both choices below

CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":

• MAXIMUM LENGTH restrictions for STR-3A:

  • DIAGRAM "B" ...Number "B6" should be approximately 55 inches or less.

    • If a longer length is required please see our 3.5 inch Street Rod Aluminum Driveshaft
• CLICK HERE to see Diagram "B" now

CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 or JAG rear with a FLAT FLANGE.

• PLEASE NOTE:  There will be an Additional cost for the correct flange yoke.
• MAXIMUM LENGTH restrictions for STR-3A:

  • DIAGRAM "K" ...Number "55" should be approximately 57 inches or less.
    • CLICK HERE to see Diagram "K" now
    • If a longer length is required please see our 3.5 inch Street Rod Aluminum Driveshaft
  • DIAGRAM "L" ...we will also need NUMBERS 58, 59 and 60 on this page to build your order

    • CLICK HERE to see Diagram "L" now
•
