Mark Williams 39002 Chromoly 4340 Slip Yoke 1350 series with 1.680 Barrel Diameter fits early Dodge VIPER T56 and also T56 VIPER conversion transmissions with 30 spline output - FREE SHIPPING

Part Number:
MW 39002

UPC:

Your Cost ~~$246.75~~ Sale Price $235.95

You Save $10.80

STATUS: IN STOCK - FREE SHIPPING

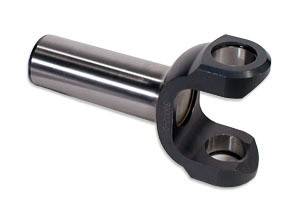

Mark Williams Enterprises 39002

1350 Series 4340 Chromoly Transmission Slip Yoke

Fits early T56 Dodge Viper transmission that require the 1.680 barrel OD with 29/30 spline output
Fits T56 Viper conversion transmissions that require the 1.680 barrel OD with 29/30 spline output
- When counting splines it is important to note that the transmission output shaft will have 30 splines.and the slip yoke will have 29 splines and 1 wide space for a total of 30 splines
DOES NOT FIT newer SRT and Dodge Viper T56 that requires 1.885 inch barrel OD

Mark Williams 39002 Chromoly 4340 Slip Yoke 1350 series with 1.680 Barrel Diameter fits early Dodge VIPER T56 and also T56 VIPER conversion transmissions with 30 spline output - FREE SHIPPING

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$246.75~~ Sale Price $235.95

You Save $10.80

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Mark Williams Enterprises 39002

1350 Series 4340 Chromoly Transmission Slip Yoke

Fits early T56 Dodge Viper transmission that require the 1.680 barrel OD with 29/30 spline output
Fits T56 Viper conversion transmissions that require the 1.680 barrel OD with 29/30 spline output
- When counting splines it is important to note that the transmission output shaft will have 30 splines.and the slip yoke will have 29 splines and 1 wide space for a total of 30 splines
DOES NOT FIT newer SRT and Dodge Viper T56 that requires 1.885 inch barrel OD

Dimensions

Length to center of u-joint... Dimension #1 = 6.125 inches
Barrel Diameter... Dimension #2 = 1.680 inches
Barrel Length... Dimension #3 = 4.125 inches
U-joint cap diameter... Dimension #4 = 1.188 inches
U-joint width... Dimension #5 = 3.625 inches
Series... 1350
Spline count... 29/30

Mark Williams 39002 Chromoly 4340 Slip Yoke 1350 series with 1.680 Barrel Diameter fits early Dodge VIPER T56 and also T56 VIPER conversion transmissions with 30 spline output - FREE SHIPPING
