PINION FLANGE - FLAT

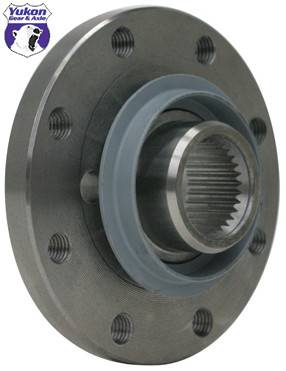

Yukon YY F100606 Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

Part Number:
YY F100606

UPC:

883584410430

Your Cost $112.61

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Yukon YY F100606

Description
- Ford Rear End Pinion Companion Flange
Application
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2007 Ford 10.5 inch rear ends
Pilot Diameter
- 2.953 inch
Splines
- 31
Seal surface diameter
- 1.812 inch - fits OEM seal
Series
- Can be used with 1350, 1410 or 1480 series flange yoke
Distance through splined hole
- 1.635 inch
Counterbore
- YES
- Diameter = 1.395 inch
- Depth = .090 inch
Bolt Circle
- 4.75 inch measured diagonally
Bolt holes
- 8 threaded holes available - Only 4 bolts are required for mounting the flange yoke
- 12 mm metric
  - See bottom of page for bolt set
Comments
- See bottom of page for available flange yoke choices
- Replacement for OEM Ford part number 2C3Z4851AB

Yukon YY F100606 Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $112.61

Yukon YY F100606

Description
- Ford Rear End Pinion Companion Flange
Application
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2007 Ford 10.5 inch rear ends
Pilot Diameter
- 2.953 inch
Splines
- 31
Seal surface diameter
- 1.812 inch - fits OEM seal
Series
- Can be used with 1350, 1410 or 1480 series flange yoke
Distance through splined hole
- 1.635 inch
Counterbore
- YES
- Diameter = 1.395 inch
- Depth = .090 inch
Bolt Circle
- 4.75 inch measured diagonally
Bolt holes
- 8 threaded holes available - Only 4 bolts are required for mounting the flange yoke
- 12 mm metric
  - See bottom of page for bolt set
Comments
- See bottom of page for available flange yoke choices
- Replacement for OEM Ford part number 2C3Z4851AB

Also known as part #: YYF100606

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Yukon YY F100606 Pinion Companion Flange 31 splines fits 1993 to 2007 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

You May Also Need These Parts to Complete the Job

DANA SPICER 3-2-1859 Flange Yoke 1350 Series 4.750 inch bolt circle with 2.953 female pilot diameter Part#: 3-2-1859 $53.95	42-1855 BOLT Set M12-1.75 for FORD 7.5, 8.8, 9.75, 10.25, 10.5 inch Rear End Pinion Flange - 12mm 12 point bolt set Part#: 42-1855 $11.95
TIMKEN 4278 Rear End Pinion Seal fits Ford Excursion, Expedition, F250, F350 Super Duty, E Series VANS with 10.25 and 10.5 inch rear ends Part#: 4278 $14.42	DANA SPICER 3-2-1839 Flange Yoke 1410 series with 2.953 female pilot Part#: 3-2-1839 $48.95
DANA SPICER 3-2-1869 Flange Yoke 1480 series with 2.953 female pilot Part#: 3-2-1869 $58.86
