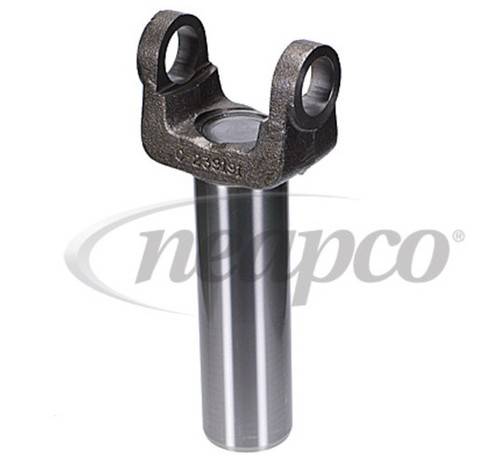

NEAPCO N3R-3-9101X GM 3R Series Transfer Case Slip Yoke 8 inch fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output

Part Number:
N3R-3-9101X

UPC:

083869015934

Your Cost ~~$124.34~~ Sale Price $118.42

You Save $5.92

STATUS: IN STOCK - FREE SHIPPING

NEAPCO N3R-3-9101X

GM 3R Series Transfer Case Slip Yoke

Fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output

INSIDE "C" Clip Style
1 1/8 Bearing Cap Diameter
Replaces ORIGINAL EQUIPMENT slip yoke 8 inch
22 degree u-joint angle

NEAPCO N3R-3-9101X GM 3R Series Transfer Case Slip Yoke fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$124.34~~ Sale Price $118.42

You Save $5.92

NEAPCO N3R-3-9101X

GM 3R Series Transfer Case Slip Yoke

CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output
- Fits 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993,1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

3R SERIES
22 Degree u-joint angle
Length to center of u-joint... Dimension #1 = 8 inches
Barrel Diameter... Dimension #2 = 1.885
Barrel Length... Dimension #3 = 6 inches
U-joint cap diameter... Dimension #4 = 1 1/8 inches
U-joint width between "C" Clips... Dimension #5A = 2.562 inches
Inside "C" Clip style u-joint...Scroll down to bottom of page for universal joints
Series... GM 3R OEM
Spline count... 32

image/jpeg

NEAPCO N3R-3-9101X GM 3R Series Transfer Case Slip Yoke fits 1980 and newer CHEVY and GMC 4x4 NP 205, 208, 241, 243, 246, 261, 263 with 32 spline output

You May Also Need These Parts to Complete the Job

SPICER 5-3147X 3R Series U-joint Greaseable Part#: 5-3147X $19.25	Dana Spicer 5-795X Universal Joint 3R Series Non greaseable Part#: 5-795X $27.95
TIMKEN 9449 - NP208 Transfer Case Rear Output Seal fits 1981 to 1988 GM 4x4 Part#: 9449 $6.46	TIMKEN 9449 - NP 241 Transfer Case 1989-1990 REAR Output Seal for GM 1st Design only Part#: 9449 $6.46
