AAM 40038047 FLANGE YOKE 1555 series fits 4.965 x 1.375 inch u-joint on rear diff end of rear driveshaft 2006 and newer DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft

Part Number:
40038047

UPC:

Your Cost $78.95

STATUS: IN STOCK

AAM Part Number 40038047

FLANGE YOKE 1555 Series

Fits DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft
- Fits 2006 and newer DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft
- Fits flat mounting flange on REAR Diff
- Fits on REAR DIFF end of AAM 1555 series rear driveshaft
OEM Numbers 68004854AA
Casting number on flange yoke 40038656
DO NOT USE on Transfer Case End of AAM 1555 series Driveshaft

Fits 1555 series u-joint 1.375 inch cap diameter....see u-joint at bottom page
Fits 1555 series u-joint 4.965 inches cap to cap
Outside Snap Ring style

AAM 40038047 FLANGE YOKE 1555 series fits 4.965 x 1.375 inch u-joint on rear diff end of rear driveshaft 2006 and newer DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft

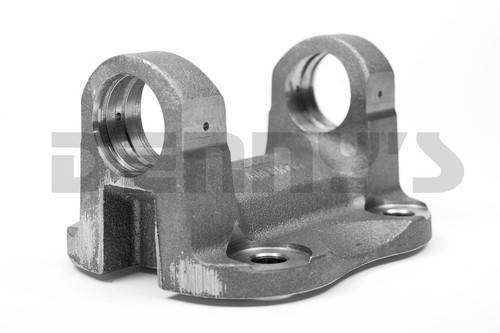

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $78.95

AAM Part Number 40038047

FLANGE YOKE 1555 Series

Fits DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft
- Fits 2006 and newer DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft
- Fits flat mounting flange on REAR Diff
- Fits on REAR DIFF end of AAM 1555 series rear driveshaft
OEM Numbers 68004854AA
Casting number on flange yoke 40038656
DO NOT USE on Transfer Case End of AAM 1555 series Driveshaft

Fits 1555 series u-joint 1.375 inch cap diameter....see u-joint at bottom page
Fits 1555 series u-joint 4.965 inches cap to cap
Outside Snap Ring style

Dimensions

A - Flange or Swing Diameter = 5.875 inches
B - Bolt Circle Diameter = 4.750 inches
- Bolt Hole Diameter = 0.500 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
C - Center Pilot Hole Diameter = 3.750 inches
- Center Pilot = MALE
Series = 1555
- Outside Snap Ring Style
- U-Joint Width between snap rings = 4.965 inches
- D - U-Joint Bearing cap diameter = 1.375 inches
G - Center of u-joint bore to Face of flange = 2.25 inches
X - inches = 3.375
Y - inches = 3.375
Special Notes:

Denny's Driveshafts Flange Yoke Dimension Diagram

AAM 40038047 FLANGE YOKE 1555 series fits 4.965 x 1.375 inch u-joint on rear diff end of rear driveshaft 2006 and newer DODGE Ram 2500, 3500 with AAM 1555 series rear driveshaft

You May Also Need These Parts to Complete the Job

AAM 74081555 Universal Joint 1555 series fits DODGE 2500/3500 AAM Rear Driveshaft and 9.25 Front Axles
Part#: 74081555

$63.95
