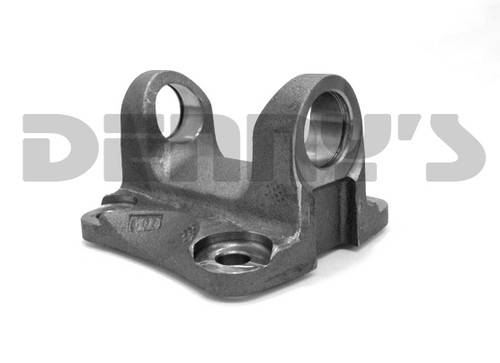

AAM 40022500 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft

Part Number:
40022500

UPC:

Your Cost $358.00

Sorry, sold out

STATUS: DISCONTINUED ITEM

AAM Part Number 40022500

FLANGE YOKE 1415 Series

Fits DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
- Fits 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
OEM Numbers 74082500
Fits 1415 series 74085339 u-joint 1.188 inch cap diameter....see u-joint at bottom page
Fits 1415 series 74085339 u-joint 4.181 inches cap to cap
Outside Snap Ring style

DIMENSIONS

A = 5.875 inches
B = 4.750 inches
C = 3.750 inches
D = 1.188 inches
G = 2.125 inches
X = 3.375 inches
Y = 3.375 inches
Bolt holes = 4
- Hole Diameter = .500 inches

AAM 40022500 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: DISCONTINUED ITEM

YOUR COST: $358.00

AAM Part Number 40022500

FLANGE YOKE 1415 Series

Fits DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
- Fits 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
OEM Numbers 74082500
Fits 1415 series 74085339 u-joint 1.188 inch cap diameter....see u-joint at bottom page
Fits 1415 series 74085339 u-joint 4.181 inches cap to cap
Outside Snap Ring style

DIMENSIONS

A = 5.875 inches
B = 4.750 inches
C = 3.750 inches
D = 1.188 inches
G = 2.125 inches
X = 3.375 inches
Y = 3.375 inches
Bolt holes = 4
- Hole Diameter = .500 inches

Denny's Driveshafts Flange Yoke Dimension Diagram

AAM 40022500 FLANGE YOKE 1415 series fits 4.181 x 1.188 u-joint on rear driveshaft 2003 and newer DODGE Ram 2500, 3500 with AAM 1415 series rear driveshaft
