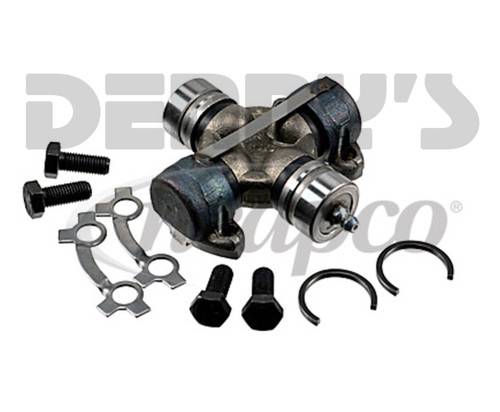

NEAPCO 1-2134 Universal Joint 2CRL / 2R fits 1941-1952 OLDS 98, 1949-1952 OLDS 88, 1950-1955 Pontiac Catalina with 3.125 pilot Wing Style u-joint at REAR of original driveshaft

Part Number:
1-2134

UPC:

083869121345

Your Cost $59.95

STATUS: IN STOCK

NEAPCO 1-2134

Universal Joint for use at Rear of original 49-52 Oldsmobile 88, 41-52 Olsdmobile 98 and 50-55 Pontiac Catalina driveshaft

2 Inside "C" Clip 1 inch caps
2 Wing Style caps for 3.125 inch pilot
2CRL / 2R series
Fits OLDSMOBILE 88 ....check dimensions before ordering
- 1949, 1950, 1951, 1952
Fits OLDSMOBILE 98 ....check dimensions before ordering
- 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952
Fits PONTIAC CATALINA ....check dimensions before ordering
- 1950, 1951, 1952, 1953, 1954, 1955

<<< DOES NOT FIT >>> Olds or Pontiac 3R Series driveshaft with 1.125 inch "C" Clip style bearing caps in driveshaft

<<< DOES NOT FIT >>> Olds or Pontiac wing style pinion flange with 3.562 inch PILOT

NEAPCO 1-2134 Universal Joint 2CRL / 2R fits 1941-1952 OLDS 98, 1949-1952 OLDS 88, 1950-1955 Pontiac Catalina with 3.125 pilot Wing Style u-joint at REAR of original driveshaft

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $59.95

NEAPCO 1-2134

Universal Joint with 2 Inside "C" Clip caps and 2 Wing Style caps for use at Rear of original driveshaft

2CRL / 2R series
Fits OLDSMOBILE 88 ....check dimensions before ordering
- 1949, 1950, 1951, 1952
Fits OLDSMOBILE 98 ....check dimensions before ordering
- 1941, 1942, 1943, 1944, 1945, 1946, 1947, 1948, 1949, 1950, 1951, 1952
Fits PONTIAC CATALINA ....check dimensions before ordering
- 1950, 1951, 1952, 1953, 1954, 1955

<<< DOES NOT FIT >>> Olds or Pontiac 3R Series driveshaft with 1.125 inch "C" Clip style bearing caps in driveshaft

<<< DOES NOT FIT >>> Olds or Pontiac wing style pinion flange with 3.562 inch PILOT

GREASEABLE U-Joint ...Fitting in end of cap

Fits Original driveshaft yoke with inside "C" clips
- K = 2.342 inches between inside surfaces of yoke where "C" clips lock in
- D = 2 bearing caps are 1 inch diameter
- Inside snap ring style to fit original driveshaft yoke

WING STYLE to fit original rear end pinion flange
- C = 3.125 inches (3 1/8) pilot diameter...this is the distance between the raised shoulders on pinion flange that centers the u-joint.
- LWT Wing Style 2 bearing caps with threaded holes
- S = 1.312 inches between threaded bolt holes on bearing cap
- Designed for original equipment Wing Style Pinion Flange
Same as Dana Spicer 5-2031X

Inside C-Clip style to Wing style conversion u-joints at Denny's Driveshafts
