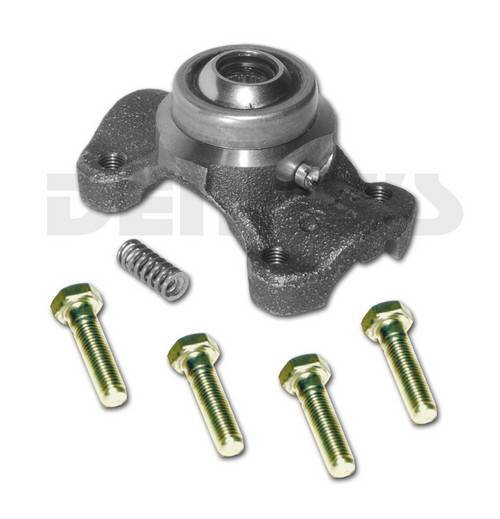

Dana Spicer 211355X 1310 CV Centering Yoke fits Jeep ALL Models up to 1993 GREASABLE

Part Number:
211355X

UPC:

023913228972

Your Cost $56.95

STATUS: IN STOCK

DANA SPICER 211355X

Jeep CV Driveshaft Greaseable Centering Yoke 1310 Series

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

Dana Spicer 211355X 1310 CV Centering Yoke fits Jeep ALL Models up to 1993 GREASABLE

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $56.95

DANA SPICER 211355X

Jeep CV Driveshaft Greaseable Centering Yoke 1310 Series

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

Fits 1310 Series CV Driveshafts in the following Jeep models:

NOTE: 1994 and newer will be the NON Greaseable 211544X centering yoke. CLICK HERE

Dana Spicer 211355X 1310 CV Centering Yoke fits Jeep ALL Models up to 1993 GREASABLE
