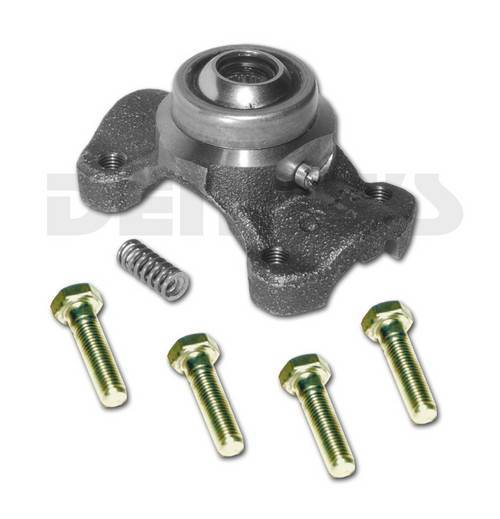

DANA SPICER 211355X Dodge CV Centering Yoke 1310 Series

Part Number:
211355X

UPC:

023913228972

Your Cost $55.23

STATUS: IN STOCK

DANA SPICER 211355X

Dodge CV Driveshaft Centering Yoke 1310 Series

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

DANA SPICER 211355X Dodge CV Centering Yoke 1310 Series

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $55.23

DANA SPICER 211355X

Dodge CV Driveshaft Centering Yoke 1310 Series

DIMENSIONS

Fits 1310 U-Joint
- (3.219 inches) 3-7/32 inches between locating tabs on centering yoke
- (1.062 inches) 1-1/16 inch dimension of saddle to hold U-Joint Bearing cap
Bolt Holes are 5/16 - 24 fine thread
- Bolt hole spacing 1.500 inches across u-joint cap
- Bolt hole spacing 2.343 inches side to side
Fits .500 inch stud diameter

INCLUDES

DANA SPICER 211355X Dodge CV Centering Yoke 1310 Series

You May Also Need These Parts to Complete the Job

CV Yoke Bolts .312 x 24 Fine Thread fits Dana Spicer 211355X, 211544X, 211179X, 211996X and Neapco N3-83-019 centering yokes Part#: 4289-516 $2.95	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.75

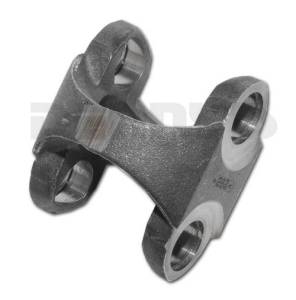

Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $27.09	DANA SPICER 2-26-497 - Double Cardan CV H Yoke 1310 Series for DODGE with 3 7/32 inch wide CV u-joint Part#: 2-26-497 $38.17
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $20.25	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 $17.15
