2012322 Corvette detachable transmission slip yoke 1330 series fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 with 32 spline output 1.886 barrel OD

Part Number:
2012322

UPC:

Your Cost $127.55

STATUS: IN STOCK - FREE SHIPPING

2012322

Detachable Transmission Slip Yoke

Fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 transmissions with 32 spline output

Corvette Transmission Slip yoke 32 spline for Turbo 400. 1330 Series Strap & Bolt Style. Restoration fanatics will appreciate how exact this unit resembles the original GM Corvette slip yoke. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. Fits 32 spline GM manual and Turbo 400 automatic transmissions. Replace that old worn out original with a new one.

PLEASE READ: If your Corvette OEM Driveshaft is a 1310 series you can make the connection with the addition of a 1310/1330 Series Combination U-Joint. Please check your driveshaft very carefully to measure the width of the u-joint that it is designed for.

If the U-Joint width is 3.219 (3 7/32 inches) then you have a 1310 series driveshaft. You can use this slip yoke with the addition of a 1310/1330 Series Combination U-Joint to connect to a 1310 Series OEM Driveshaft. This U-Joint is shown at the bottom of your page.

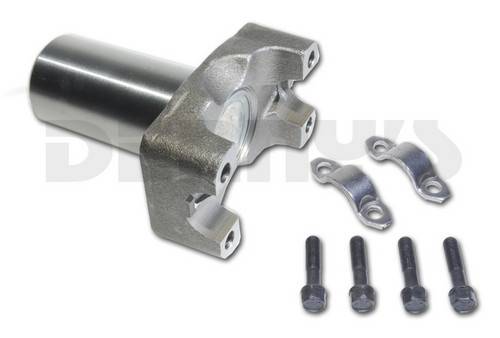

2012322 Corvette detachable transmission slip yoke 1330 series fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 with 32 spline output 1.886 barrel OD

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $127.55

2012322

Detachable Transmission Slip Yoke

Fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 transmissions with 32 spline output

1330 series

Comes with (2) straps and (4) bolts
Length to center of u-joint = 5.00
Barrel Diameter = 1.886 inches
Barrel Length = 3.250
U-joint cap diameter = 1.062 inches
U-joint width = 3.625 inches
Series... 1330
Spline count... 32
Locating Tab style

1963 to 1979 Corvette Transmission Slip yoke 32 spline for Turbo 400. 1330 Series Strap & Bolt Style. Restoration fanatics will appreciate how exact this unit resembles the original GM Corvette slip yoke. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. Fits 32 spline GM manual and Turbo 400 automatic transmissions. Replace that old worn out original with a new one.

If the U-Joint width is 3.219 (3 7/32 inches) then you have a 1310 series driveshaft. You can use this slip yoke with the addition of a 1310/1330 Series Combination U-Joint to connect to a 1310 Series OEM Driveshaft. This U-Joint is shown at the bottom of your page.

2012322 Corvette detachable transmission slip yoke 1330 series fits Muncie, Borg Warner, Richmond, T400, 4L80, 4L85 with 32 spline output 1.886 barrel OD

You May Also Need These Parts to Complete the Job

Neapco 1-0024 Strap & Bolt Set for 1963-1979 Corvette 1310-1330 Series Part#: 1-0024 ~~$10.45~~ $9.95	Dana Spicer 5-1330-1X GREASEABLE Universal Joint 1330 Series Part#: 5-1330-1X $20.43
Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19	DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77
DANA SPICER 5-134X - 1310 to 1330 COMBINATION U-JOINT 3 7/32 X 3 5/8 Part#: 5-134X $25.95	DANA SPICER 5-3614X Universal Joint 1330 Series COATED for ALUMINUM DRIVESHAFTS Part#: 5-3614X $23.90
