2081856 Transmission Slip yoke fits 1963 to 1979 Corvette 1310 Series U-Bolt Style fits BW, Muncie, Powerglide, T350 with 27 spline rear output

Part Number:
2081856

UPC:

Your Cost $130.85

STATUS: IN STOCK - FREE SHIPPING

Part Number 2081856

Transmission Slip yoke - detachable

Fits Chevrolet Corvette
- 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
- Fits BW, Muncie, Powerglide, T350, Saginaw with 27 spline rear output
1310 Series
U-Bolt Style
- Comes with (2) U-bolts (4) lock washers and (4) nuts.

2081856 Transmission Slip yoke fits 1963 to 1979 Corvette 1310 Series U-Bolt Style fits BW, Muncie, Powerglide, T350 with 27 spline rear output

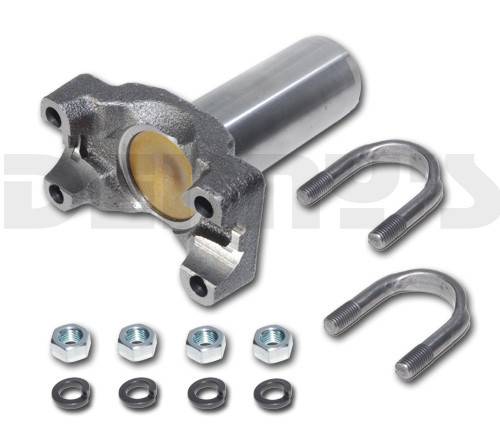

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $130.85

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

Part Number 2081856

Transmission Slip yoke - detachable

Fits Chevrolet Corvette
- 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979
- Fits BW, Muncie, Powerglide, T350, Saginaw with 27 spline rear output
1310 Series
U-Bolt Style
- Comes with (2) U-bolts (4) lock washers and (4) nuts.

Restoration fanatics will appreciate how exact this unit resembles the original GM Corvette slip yoke. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. Fits all 27 spline GM manual and automatic transmissions. Comes with (2) U-bolts (4) lock washers and (4) nuts. Replace that old worn out original with a new one.

DIMENSIONS

1310 Series
- 3.219 (3 7/32 inches) between locating tabs
- Fits universal joint with 1.062 (1 1/16 inch) bearing cap diameter
- see 5-153X, 5-1310X, 5-1310-1X listed at bottom of this page
Overall Length to centerline of u-joint = 5 inches
Barrel length to radius = 3.375 inches

PLEASE READ: There are some Corvette Transmission Slip Yokes that look like this slip yoke but they are actually 1330 series. The 1330 series version is not available. Please check yours very carefully to measure the width of the u-joint that it is designed for.

If the U-Joint width is 3.625 (3 5/8 inches) between the locating tabs then you have a 1330 series. You can use this slip yoke with the addition of a 1310/1330 Series Combination U-Joint to connect to a 1330 Series OEM Driveshaft.
- This U-Joint....SPICER 5-134X is shown at the bottom of your page.
