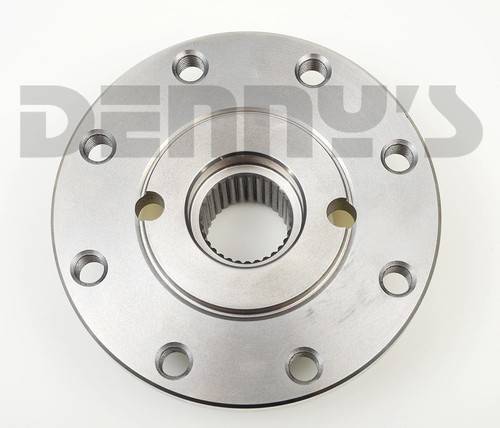

AAM 2C3Z4851AB Pinion Companion Flange 31 splines fits 1993 to 2010 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

Part Number:
2C3Z4851AB

UPC:

Your Cost ~~$175.47~~ Sale Price $167.11

You Save $8.36

Sorry, sold out

STATUS: See other choices in listing

AAM 2C3Z4851AB

Description
- Ford Rear End Pinion Companion Flange
Application
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2010 Ford 10.5 inch rear ends
SUBSTITUTE REPLACEMENT
- Yukon YY F100606

AAM 2C3Z4851AB Pinion Companion Flange 31 splines fits 1993 to 2010 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: See other choices in listing

YOUR COST: ~~$175.47~~ Sale Price $167.11

You Save $8.36

AAM 2C3Z4851AB

Description
- Ford Rear End Pinion Companion Flange
Fits
- 1993 to 1998 Ford 10.25 inch rear ends
- 1999 to 2010 Ford 10.5 inch rear ends
Pilot Diameter
- 2.953 inch
Splines
- 31
Seal surface diameter
- 1.812 inch - fits OEM seal
Series
- 1350/1410/1480
Distance through splined hole
- 1.635 inch
Counterbore
- YES
- Diameter = 1.395 inch
- Depth = .090 inch
Bolt Circle
- 4.75 inch measured diagonally
Bolt holes
- 8 threaded holes available - Only 4 bolts are required for mounting the flange yoke
- 12 mm metric
  - See bottom of page for bolt set
Comments
- Can be used with a 1350, 1410 or 1480 flange yoke. See bottom of page for choices.
- Replaces OEM Ford 2C3Z4851AB
SUBSTITUTE REPLACEMENT
- Yukon YY F100606

AAM 2C3Z4851AB Pinion Companion Flange 31 splines fits 1993 to 2010 Ford Super Duty with 10.25 and 10.5 inch rear end - replaces OEM 2C3Z4851AB
