Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

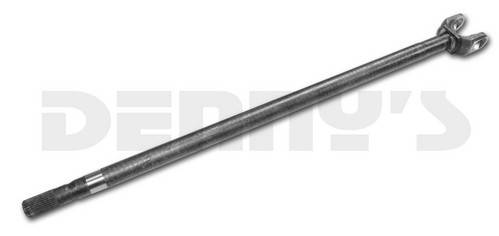

Dana Spicer 660276-1 LEFT SIDE INNER AXLE 28 spline fits 1978 to 1987 Chevy and GMC with 8.5 inch 10 bolt
Part Number:
660276-1


UPC:
023913134549
Your Cost $225.95
STATUS:  SOLD OUT...More Coming Soon

Dana Spicer 660276-1

  • LEFT INNER AXLE SHAFT
    • 28 Splines
  • Fits GM 8.5 inch 10 bolt Front Axle
    • Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
      • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
  • Genuine DANA SPICER Replacement Front Axle Shaft

DIMENSIONS

  • 28 SPLINES
  • Dimension "C1" = 1.20 inch diameter
  • Dimension "C" = 35.5 inches
  • Use with Spicer 5-760X Universal Joint...See bottom of this page
    • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
    • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )



Spicer
Dana Spicer 660276-1 LEFT SIDE INNER AXLE 28 spline fits 1978 to 1987 Chevy and GMC with 8.5 inch 10 bolt
Dana Spicer 660276-1 LEFT SIDE INNER AXLE 28 spline fits 1978 to 1987 Chevy and GMC with 8.5 inch 10 bolt
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $225.95

Dana Spicer 660276-1

  • LEFT INNER AXLE SHAFT
    • 28 Splines
  • Fits GM 8.5 inch 10 bolt Front Axle
    • Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
      • 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
  • Genuine DANA SPICER Replacement Front Axle Shaft

DIMENSIONS

  • 28 SPLINES
  • Dimension "C1" = 1.20 inch diameter
  • Dimension "C" = 35.5 inches
  • Use with Spicer 5-760X Universal Joint...See bottom of this page
    • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
    • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
image/jpeg
Dana Spicer 660276-1 LEFT SIDE INNER AXLE 28 spline fits 1978 to 1987 Chevy and GMC with 8.5 inch 10 bolt

Dana Spicer 660276-1 LEFT SIDE INNER AXLE 28 spline fits 1978 to 1987 Chevy and GMC with 8.5 inch 10 bolt

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.
You May Also Need These Parts to Complete the Job
Dana Spicer 36352 Tube Seal 2.285 OD for GM 8.5 inch 10 bolt 1977 to 1991 Chevy GMC K5, K10, K15, K20, K25
$4.95
Dana Spicer 41677 OUTER Axle Shaft fits 1978 to 1991 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle
$59.95
Dana Spicer 5-760X Front Axle Universal Joint fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with 8.5 inch 10 Bolt Front
$28.56
