Dana Spicer 41677 OUTER Axle Shaft fits 1978 to 1991 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle

Part Number:
41677

UPC:

023913140823

Your Cost $59.95

STATUS: IN STOCK

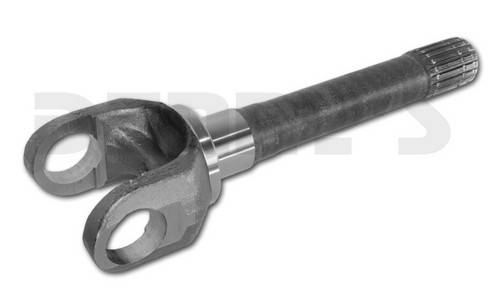

Dana Spicer 41677

OUTER AXLE SHAFT
- 19 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Genuine Dana Spicer axle shaft

Dana Spicer 41677 OUTER Axle Shaft fits 1978 to 1991 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $59.95

Dana Spicer 41677

OUTER AXLE SHAFT
- 19 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991
Genuine Dana Spicer axle shaft

DIMENSIONS

19 SPLINES
Dimension "B1" = 1.250 inch diameter
Dimension "B" = 9.94 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

UPGRADE AVAILABLE:

See Dana Spicer 10007802 CHROMOLY outer axle shaft upgrade replaces 41677 and 41677-1541
See bottom of this page

Dana Spicer 41677 OUTER Axle Shaft fits 1978 to 1991 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle

You May Also Need These Parts to Complete the Job

Dana Spicer 31624 Snap Ring for Outer Axle Shafts GM 8.5 inch 10 bolt front Part#: 31624 $0.76	Dana Spicer 36364 Seal Retainer for Outer Axle Shaft DANA 44 and 8.5 10 bolt Part#: 36364 $3.65

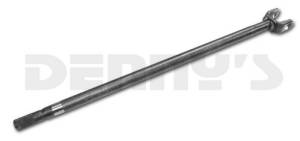

Dana Spicer 706527X Spindle Bearing and Seal Set fits DANA 44 and 8.5 10 bolt Part#: 706527X $15.95	Dana Spicer 660276-1 LEFT INNER Axle Shaft OEM Replacement fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES Part#: 660276-1 $225.95
