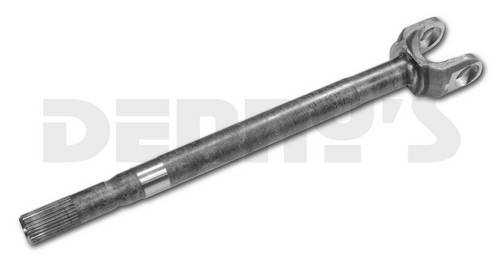

Dana Spicer 29903-1X RIGHT INNER Axle Shaft OEM Replacement fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES

Part Number:
29903-1X

UPC:

023913134723

Your Cost $125.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 29903-1X

RIGHT INNER AXLE SHAFT
- 28 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Genuine DANA SPICER Replacement Front Axle Shaft

Dana Spicer 29903-1X RIGHT INNER Axle Shaft OEM Replacement fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $125.95

Dana Spicer 29903-1X

RIGHT INNER AXLE SHAFT
- 28 Splines
Fits GM 8.5 inch 10 bolt Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987
Genuine DANA SPICER Replacement Front Axle Shaft

DIMENSIONS

28 SPLINES
Dimension "C1" = 1.20 inch diameter
Dimension "C" = 19.15 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 29903-1X RIGHT INNER Axle Shaft OEM Replacement fits 1978 to 1987 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with 8.5 inch 10 Bolt front axle 28 SPLINES
