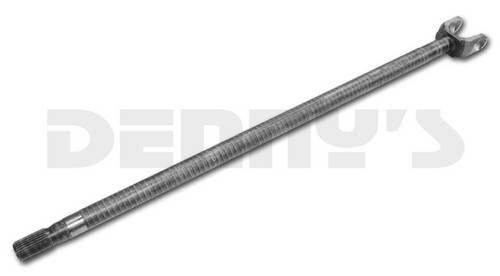

Dana Spicer 27902-2X LEFT SIDE INNER AXLE shaft 30 spline fits Dana 44 front 1973 to 1980 Chevy GMC Truck & Blazer
Part Number:
27902-2X


UPC:
023913134785
Your Cost $139.95
STATUS:  IN STOCK - FREE SHIPPING

Dana Spicer 27902-2X

INNER AXLE SHAFT

Fits LEFT SIDE - Drivers side

  • Fits Chevy K5 Blazer, K10, K20 4x4 trucks with Dana 44 Front axle
    • 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
  • Fits GMC K5 Jimmy, K15, K25 4x4 trucks with Dana 44 Front axle
    • 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
  • 30 splines
  • Fits 5-760X axle universal joint. See bottom of this page.

DIMENSIONS

  • C1 =  1.31 inch diameter with 30 Splines
  • C = 36.13 inches
  • Use with Spicer 5-760X Universal Joint...See bottom of this page
  • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
  • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
Spicer
Dana Spicer 27902-2X LEFT SIDE INNER AXLE shaft 30 spline fits Dana 44 front 1973 to 1980 Chevy GMC Truck & Blazer
Dana Spicer 27902-2X LEFT SIDE INNER AXLE shaft 30 spline fits Dana 44 front 1973 to 1980 Chevy GMC Truck & Blazer
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $139.95

Dana Spicer 27902-2X

INNER AXLE SHAFT

Fits LEFT SIDE - Drivers side

  • Fits Chevy K5 Blazer, K10, K20 4x4 trucks with Dana 44 Front axle
    • 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
  • Fits GMC K5 Jimmy, K15, K25 4x4 trucks with Dana 44 Front axle
    • 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
  • 30 splines
  • Fits 5-760X axle universal joint. See bottom of this page.

DIMENSIONS

  • C1 =  1.31 inch diameter with 30 Splines
  • C = 36.13 inches
  • Use with Spicer 5-760X Universal Joint...See bottom of this page
  • U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
  • U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
