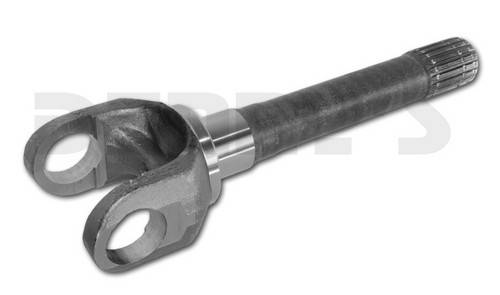

Dana Spicer 41677 OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint

Part Number:
41677

UPC:

023913140823

Diagram Number:
47-OUTER

Your Cost $59.95

STATUS: IN STOCK

Dana Spicer 41677

OUTER AXLE SHAFT
- 19 Splines
Fits DANA 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Genuine Dana Spicer axle shaft
Use with original inner axle shaft or replacement made for 5-760X u-joint ONLY
DOES NOT FIT all with 1.062 bearing caps (see 5-260X ) typically found on 1969 to 1972 Chevy and GMC Blazer, 1/2 ton, 3/4 ton.

Dana Spicer 41677 OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $59.95

Dana Spicer 41677

OUTER AXLE SHAFT
- 19 Splines
Fits DANA 44 Front Axle
- Chevy and GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35
  - 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
Genuine Dana Spicer axle shaft
Use with original inner axle shaft or replacement made for 5-760X u-joint ONLY
DOES NOT FIT all with 1.062 bearing caps (see 5-260X ) typically found on 1969 to 1972 Chevy and GMC Blazer, 1/2 ton, 3/4 ton.

DIMENSIONS

19 SPLINES
Dimension "B1" = 1.250 inch diameter
Dimension "B" = 9.94 inches
Use with Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

Dana Spicer 41677 OUTER Axle Shaft fits 1973 to 1980 Chevy GMC Jimmy, K5 Blazer, K10, K15, K20, K25, K30, K35 with DANA 44 front axle 19 spline 9.94 inches fits 5-760X Axle U-joint

You May Also Need These Parts to Complete the Job

Dana Spicer 31624 Snap Ring for Outer Axle Shafts DANA 44 Part#: 31624 $0.76	Dana Spicer 36364 Seal Retainer for Outer Axle Shaft DANA 44 and 8.5 10 bolt Part#: 36364 $3.65
Dana Spicer 706527X Spindle Bearing and Seal Set fits DANA 44 and 8.5 10 bolt Part#: 706527X $15.95	Dana Spicer 706528X SPINDLE SMALL Bearing style fits 1973 to 1976-1/2 Chevy 1/2 ton K5, K10, Suburban and GMC 1/2 ton Jimmy, K15 with DANA 44 Front axle Part#: 706528X $252.89
Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING Part#: 706570X $263.50	Dana Spicer 27902-2X LEFT SIDE INNER AXLE shaft 30 spline fits Dana 44 front 1973 to 1980 Chevy GMC Truck & Blazer Part#: 27902-2X $139.95

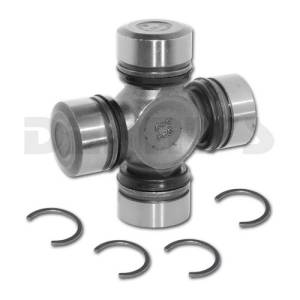

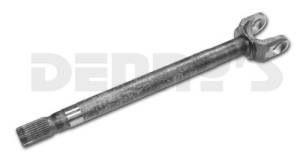

Dana Spicer 27902-1X RIGHT SIDE INNER AXLE shaft 30 spline fits Dana 44 front 1973 to 1980 Chevy GMC Truck & Blazer Part#: 27902-1X $89.95	Dana Spicer 5-760X Front 4x4 Axle Universal Joint Non Greaseable Part#: 5-760X $28.56
