Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

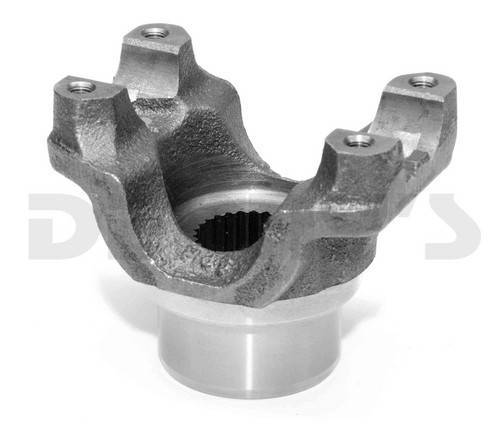

Dana Spicer 2-4-4601-1 Pinion Yoke 1310 series fits JEEP DANA 35 with 26 splines Strap & Bolt Style
Part Number:
2-4-4601-1


UPC:
023913229689

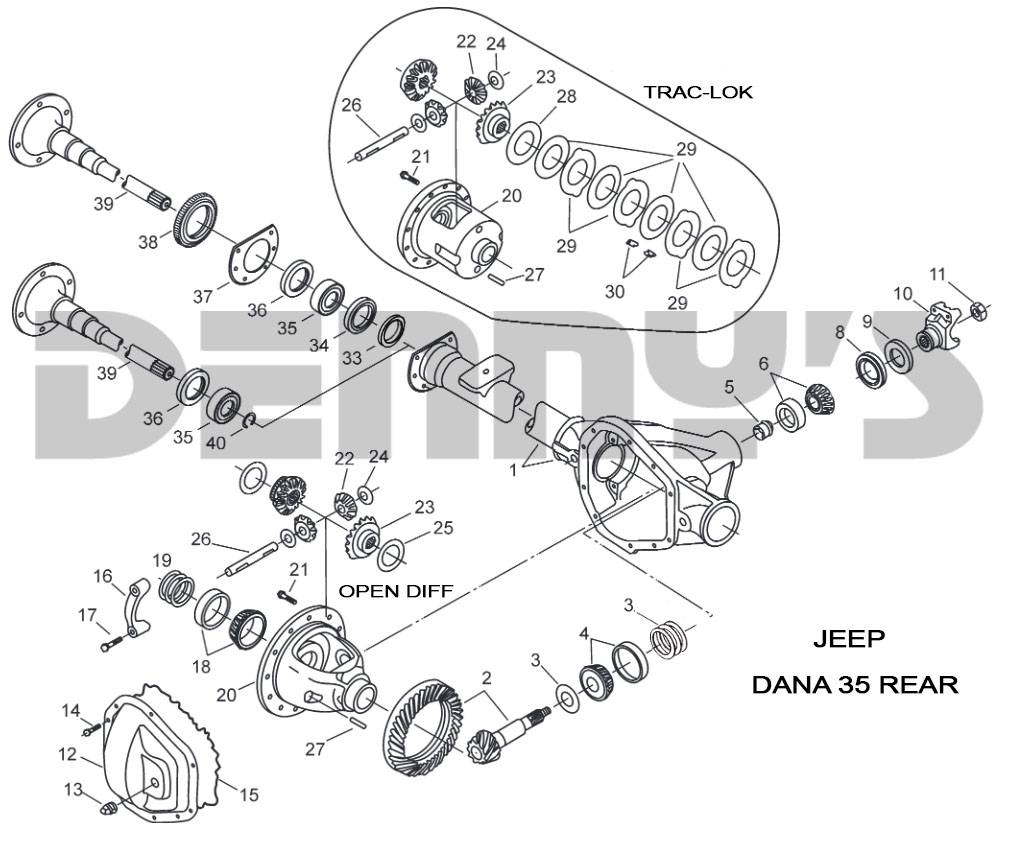

Diagram Number:
10
Your Cost $45.95 Sale Price $40.95
You Save $5.00
STATUS:  IN STOCK

Dana Spicer 2-4-4601-1

Pinion Yoke

  • 1310 series
  • Fits JEEP DANA 35 Rear
  • 26 splines
  • Strap & Bolt Style
    • Strap & Bolt Set Sold Separately
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.219
  • Q = 1.375
  • R = 1.844
  • S = 2.938
  • COUNTERBORE DEPTH = .120

Spicer
Dana Spicer 2-4-4601-1 Pinion Yoke 1310 series fits JEEP DANA 35 with 26 splines Strap & Bolt Style
Dana Spicer 2-4-4601-1 Pinion Yoke 1310 series fits JEEP DANA 35 with 26 splines Strap & Bolt Style
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $45.95 Sale Price $40.95
You Save $5.00

Dana Spicer 2-4-4601-1

Pinion Yoke

  • 1310 series
  • Fits JEEP DANA 35 Rear
  • 26 splines
  • Strap & Bolt Style
    • Strap & Bolt Set Sold Separately
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.219
  • Q = 1.375
  • R = 1.844
  • S = 2.938
  • COUNTERBORE DEPTH = .120
image/jpeg
Dana Spicer 2-4-4601-1 Pinion Yoke 1310 series fits JEEP DANA 35 with 26 splines Strap & Bolt Style

Dana Spicer 2-4-4601-1 Pinion Yoke 1310 series fits JEEP DANA 35 with 26 splines Strap & Bolt Style

You May Also Need These Parts to Complete the Job

Dana Spicer 2-70-18X Strap and Bolt set fits Dana 60, 61, 70 pinion yokes 1310 and 1330 series designed for 1.062 diameter u-joint bearing caps
$7.55
