1963-1979 Corvette Pinion yoke 1310 Series Strap & Bolt Style

Part Number:
9136655

UPC:

Your Cost ~~$110.95~~ Sale Price $102.95

You Save $8.00

STATUS: IN STOCK - FREE SHIPPING

1963-1979 Corvette Pinion yoke 1310 Series Strap & Bolt Style 30 spline original equipment replacement.

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$110.95~~ Sale Price $102.95

You Save $8.00

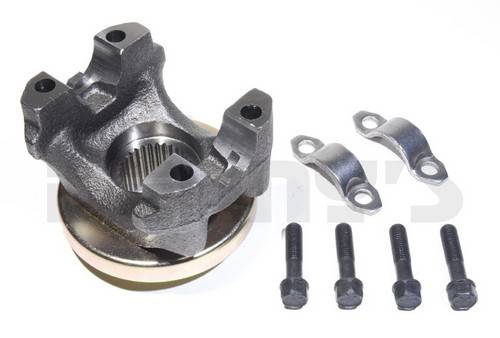

1963-1979 Corvette Pinion yoke 1310 Series Strap & Bolt Style 30 spline original equipment replacement. Restoration fanatics will appreciate how exact this unit resembles the original OEM GM Corvette Pinion yoke. U-joint size is 3 7/32 inches wide with 1 1/16th inch cap diameter. These will have the same overall dimensions as your original yoke and most importantly for those of you who are looking for “restoration originality” they will look just like the originals. Fits all 30 spline Corvette rear differentials. Comes with (2) Straps and (4) Bolts. Replace that old worn out original with a new one.

1310 series
Strap & Bolt Set included
Exact match to original equipment
30 splines to fit all 1963 to 1979 Corvette differentials
Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
SPLINE OD = 1.328
D = 1.062
E = 3.219
Q = 1.190
R = 1.740
S = 2.875
