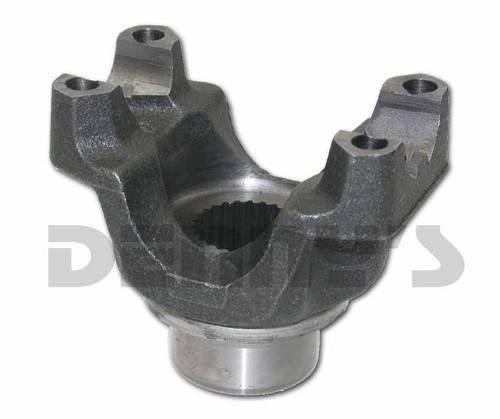

Corvette Pinion Yokes
Denny's Driveshafts offer a variety of Chevrolet Corvette Driveshafts and Pinion Yokes for the C1, C2, C3 and C4. The early Corvette pinion yoke was a U-Bolt style and the later Corvette rear end pinion yoke utilized a strap and bolt design to hold the rear universal joint into the yoke. Denny's offers both the original equipment strap and bolt design and also the u-bolt design as replacements. Please measure your u-joint width before ordering. The OEM 1310 u-joint will measure 3.219 wide and the OEM 1330 will measure 3.625 wide. Both will have a 1.062 bearing cap diameter. Upgrading to the larger 1350 series will be 3.625 inches wide and 1.188 inch diameter bearing caps.
DANA 36 with 26 spline pinion
DANA 44 with 29 spline pinion
1963-1979 with 30 spline pinion
|
