Chevrolet > CAMARO 1967 to 2002 > Pinion Yokes > 12 Bolt 30 spline

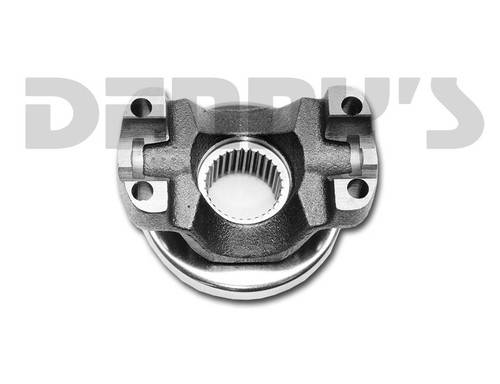

NEAPCO N2-4-GM02X Pinion Yoke 1330 Series fits Chevy Camaro 12 Bolt Rear end U-Bolt Style

Part Number:
N2-4-GM02X

UPC:

083869002934

Your Cost $101.95

STATUS: IN STOCK

Neapco N2-4-GM02X

Rear End PINION YOKE

Fits Chevy Camaro 12 Bolt Rear Ends
30 Splines
1330 series ... fits 3-5/8 x 1.062 universal joints shown at bottom of this page
U-Bolt Style.... fits u-bolt set shown at bottom of this page

DIMENSIONS

SPLINE OD = 1.328
D = 1.062
E = 3.625
Q = 1.190
R = 1.740
S = 2.70

Neapco

NEAPCO N2-4-GM02X Pinion Yoke 1330 Series fits Chevy Camaro 12 Bolt Rear end U-Bolt Style

NEAPCO N2-4-GM02X Pinion Yoke 1330 Series fits Chevy Camaro 12 Bolt Rear end U-Bolt Style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $101.95

Neapco N2-4-GM02X

Rear End PINION YOKE

Fits Chevy Camaro 12 Bolt Rear Ends
30 Splines
1330 series ... fits 3-5/8 x 1.062 universal joints shown at bottom of this page
U-Bolt Style.... fits u-bolt set shown at bottom of this page

DIMENSIONS

SPLINE OD = 1.328
D = 1.062
E = 3.625
Q = 1.190
R = 1.740
S = 2.70

image/jpeg

NEAPCO N2-4-GM02X Pinion Yoke 1330 Series fits Chevy Camaro 12 Bolt Rear end U-Bolt Style

NEAPCO N2-4-GM02X Pinion Yoke 1330 Series fits Chevy Camaro 12 Bolt Rear end U-Bolt Style

You May Also Need These Parts to Complete the Job

8812 Chevy 12 Bolt PINION NUT and WASHER Set Part#: 8812 $9.95	TIMKEN 8460N Pinion Seal fits Chevy 12 Bolt CAR & TRUCK rear ends Part#: 8460N $13.95
Dana Spicer 2-94-28X U-Bolt Set fits 1.062 bearing cap diameter 1.416 CL on 1310 or 1330 pinion yokes, transfer case yokes and transmission yokes FORD, CHEVY, GMC, DODGE, JEEP, IHC Part#: 2-94-28X $5.98	NEAPCO 2-4800 - 1330 Series Greaseable Universal Joint Part#: 2-4800 ~~$18.25~~ $17.38
Dana Spicer 5-213X Universal Joint 1330 Series Greaseable U-Joint Part#: 5-213X $19.19	DANA SPICER 5-1330X - Universal Joint 1330 Series with (4) 1.062 Bearing Caps NON Greaseable Part#: 5-1330X $20.77
