Dana Spicer 3-3-1701KX Driveshaft Slip Yoke 1410 Series 1.562 x 16 splines 6.812 inches
Part Number:
3-3-1701KX


UPC:
023913230586
Your Cost $430.21 Sale Price $345.95
You Save $84.26
STATUS:  IN STOCK - FREE SHIPPING

Dana Spicer 3-3-1701KX

Driveshaft Slip Yoke

  • 1410 series
  • Fits Spline Outside Diameter = 1.562
  • Number of Splines = 16
  • Lock up style = OUTSIDE SNAP RING
Spicer
Dana Spicer 3-3-1701KX Driveshaft Slip Yoke 1410 Series 1.562 x 16 splines 6.812 inches
Dana Spicer 3-3-1701KX Driveshaft Slip Yoke 1410 Series 1.562 x 16 splines 6.812 inches
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $430.21 Sale Price $345.95
You Save $84.26

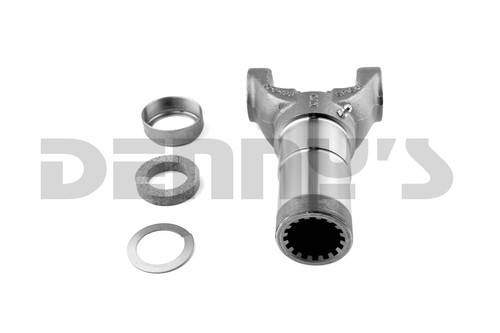

Dana Spicer 3-3-1701KX

1410 Series Slip Yoke

  • Fits Spline Outside Diameter = 1.562
  • Number of Splines = 16
  • Series = 1410
  • Lock up style = OUTSIDE SNAP RING
  • Fits Universal Joint Width = 4.188
  • D - Universal Joint Bore = 1.188
  • Includes Dust Cap Part Number = D3H
    • Dust Cap Style = 3 PIECE SCREW ON
  • F - Center of u-joint bore to plug = 1.312
  • J - Center of u-joint bore to End of Slip yoke = 6.812
  • Special Notes:  For splined dust cap, use D3J





Dana Spicer 3-3-1701KX Driveshaft Slip Yoke 1410 Series 1.562 x 16 splines 6.812 inches

Dana Spicer 3-3-1701KX Driveshaft Slip Yoke 1410 Series 1.562 x 16 splines 6.812 inches

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.
You May Also Need These Parts to Complete the Job
Dana Spicer 5-160X Universal Joint 1410 Series
$24.95
Dana Spicer 3-53-1191 MIDSHIP SPLINE Fits 4.0 inch .083 wall tube 1.562 inch Diameter with 16 Splines
$83.95 $78.68
Dana Spicer 3-53-07832 MIDSHIP SPLINE Fits 3.5 inch .083 wall tube 1.562 inch Diameter with 16 Splines
$121.22 $108.88
Dana Spicer 3-53-1311 MIDSHIP SPLINE Fits 3.5 inch .083 wall tube 1.562 inch Diameter with 16 Splines
$136.95 $126.95
Dana Spicer 5-1410-1X GREASEABLE Universal Joint 1410 Series fitting in end of bearing cap
$36.24
Dana Spicer 5-1410X Universal Joint 1410 Series NON Greaseable
$31.95

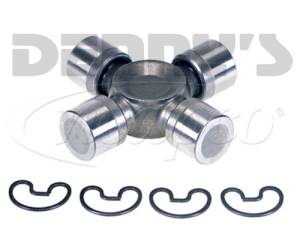

Neapco 2-0054G NON Greaseable universal joint 1410 series 4.188 x 1.188 outside snap rings
