Driveshaft and Driveline Parts > COMPANION FLANGES > ROUND SHAFT with KEYWAY > Use with 1000/1110 Series Flange Yokes

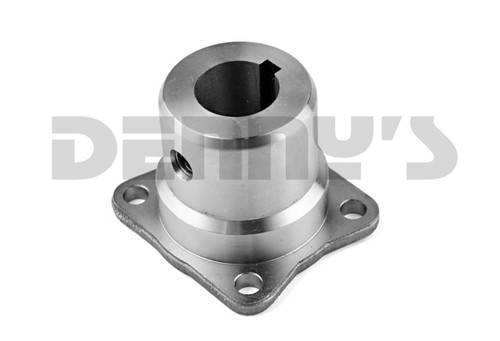

Dana Spicer 1-1-143 Companion Flange 1000/1110 series Fits 1 inch Round Shaft with .250 KEY

Part Number:
1-1-143

UPC:

023913233563

Your Cost ~~$226.28~~ Sale Price $190.63

You Save $35.65

STATUS: FACTORY DIRECT TO YOU

DANA SPICER PTO COMPANION FLANGE for power take off applications

PART NUMBER: 1-1-143

1000/1110 series

Spicer

Dana Spicer 1-1-143 Companion Flange 1000/1110 series Fits 1 inch Round Shaft with .250 KEY

Dana Spicer 1-1-143 PTO Companion Flange 1000/1110 series Fits 1 inch Round Shaft with .250 KEY

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT TO YOU

YOUR COST: ~~$226.28~~ Sale Price $190.63

You Save $35.65

DANA SPICER COMPANION FLANGE for power take off applications

PART NUMBER: 1-1-143

SERIES 1000, 1110
P - FITS 1 INCH DIAMETER SHAFT
C - FEMALE PILOT DIAMETER - 2.250 INCHES
X - KEYWAY WIDTH - .250 INCHES
W - KEYWAY LOCATION - 12
W - SET SCREW THREAD DIAMETER - .375 INCHES
W - SET SCREW LOCATION - 6
R - HUB DIAMETER - 1.875 INCHES
F - LENGTH THROUGH HOLE - 1.5 INCHES
G - FLANGE FACE TO END OF HUB - 2.125 INCHES
A - TOTAL SWING DIAMETER - 3.50 INCHES
B - BOLT CIRCLE DIAMETER - 2.75 INCHES
4 BOLT HOLES .313 DIAMETER

image/jpeg

Dana Spicer 1-1-143 Companion Flange 1000/1110 series Fits 1 inch Round Shaft with .250 KEY

Dana Spicer 1-1-143 PTO Companion Flange 1000/1110 series Fits 1 inch Round Shaft with .250 KEY
