Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

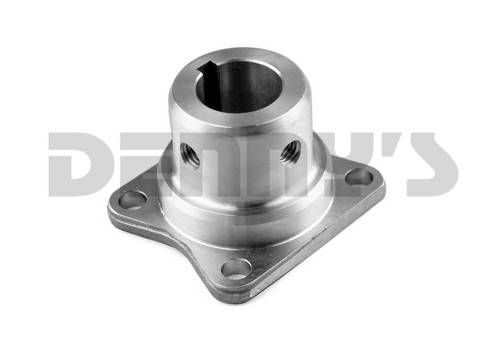

DANA SPICER 2-1-293 Companion Flange 1280/1310 series Fits 1.125 inch Round Shaft with .250 KEY
Part Number:
2-1-293


UPC:
023913232627
Your Cost $276.03
STATUS:  FACTORY DIRECT TO YOU

DANA SPICER 2-1-293

PTO COMPANION FLANGE for power take off applications

1280/1310 series

Spicer
DANA SPICER 2-1-293 Companion Flange 1280/1310 series Fits 1.125 inch Round Shaft with .250 KEY
DANA SPICER 2-1-293 Companion Flange 1280/1310 series Fits 1.125 inch Round Shaft with .250 KEY
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $276.03

DANA SPICER 2-1-293

COMPANION FLANGE for power take off applications

  • SERIES 1280, 1310
  • P - FITS 1.125 INCH DIAMETER SHAFT
  • C - FEMALE PILOT DIAMETER -  2.375 INCHES
  • X - KEYWAY WIDTH - .250 INCHES
  • W - KEYWAY LOCATION - 12
  • W - SET SCREW THREAD DIAMETER  - .375 INCHES
  • W - SET SCREW LOCATION - 6 and 9
  • R - HUB DIAMETER - 1.875 INCHES
  • F - LENGTH THROUGH HOLE -  1.5 INCHES
  • G - FLANGE FACE TO END OF HUB  - 2.062 INCHES
  • A - TOTAL SWING DIAMETER - 3.875 INCHES
  • B - BOLT CIRCLE DIAMETER - 3.125 INCHES
  • 4 BOLT HOLES .375 DIAMETER
image/jpeg
DANA SPICER 2-1-293 Companion Flange 1280/1310 series Fits 1.125 inch Round Shaft with .250 KEY

DANA SPICER 2-1-293 Companion Flange 1280/1310 series Fits 1.125 inch Round Shaft with .250 KEY
