Driveshaft and Driveline Parts > COMPANION FLANGES > ROUND SHAFT with KEYWAY > Use with 1280/1310 Series Flange Yokes > Fits 1.250 inch ROUND SHAFT with .250 KEYWAY

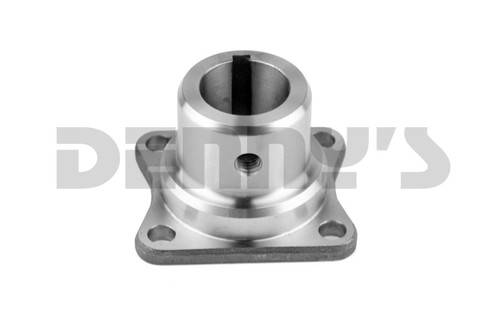

DANA SPICER 2-1-323 Companion Flange 1280/1310 series Fits 1.250 inch Round Shaft with .250 KEY

Part Number:
2-1-323

UPC:

023913235697

Your Cost $220.95

STATUS: FACTORY DIRECT TO YOU

DANA SPICER 2-1-323

PTO COMPANION FLANGE for power take off applications

1280/1310 series

Spicer

DANA SPICER 2-1-323 Companion Flange 1280/1310 series Fits 1.250 inch Round Shaft with .250 KEY

DANA SPICER 2-1-323 Companion Flange 1280/1310 series Fits 1.250 inch Round Shaft with .250 KEY

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT TO YOU

YOUR COST: $220.95

DANA SPICER 2-1-323

COMPANION FLANGE for power take off applications

SERIES 1280, 1310
P - FITS 1.250 INCH DIAMETER SHAFT
C - FEMALE PILOT DIAMETER - 2.375 INCHES
X - KEYWAY WIDTH - .250 INCHES
W - KEYWAY LOCATION - 12
W - SET SCREW THREAD DIAMETER - .375 INCHES
W - SET SCREW LOCATION - 6
R - HUB DIAMETER - 1.875 INCHES
F - LENGTH THROUGH HOLE - 1.5 INCHES
G - FLANGE FACE TO END OF HUB - 2.062 INCHES
A - TOTAL SWING DIAMETER - 3.875 INCHES
B - BOLT CIRCLE DIAMETER - 3.125 INCHES
4 BOLT HOLES .375 DIAMETER

image/jpeg

DANA SPICER 2-1-323 Companion Flange 1280/1310 series Fits 1.250 inch Round Shaft with .250 KEY

DANA SPICER 2-1-323 Companion Flange 1280/1310 series Fits 1.250 inch Round Shaft with .250 KEY

You May Also Need These Parts to Complete the Job

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10	DANA SPICER 2-2-329 Fits 1280, 1310 Series companion flange with 2.375 pilot Part#: 2-2-329 $27.95
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
