Jeep > FRONT AXLES and RELATED PARTS > DANA 30 - DISCONNECT FRONT > PINION YOKE

DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline Fits 1984 to 1996 JEEP XJ, YJ, TJ Dana 30 front

Part Number:
2-4-8091-1X

UPC:

023913230050

Your Cost $49.95

STATUS: IN STOCK

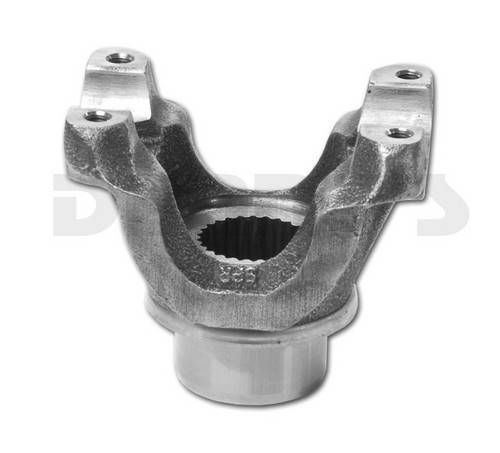

DANA SPICER 2-4-8091-1X

PINION YOKE - Strap and Bolt Style

Fits JEEP XJ, YJ, TJ with DANA 30 Front
- 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

Spicer

DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline Fits 1984 to 1996 JEEP XJ, YJ, TJ Dana 30 front

DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline Fits 1984 to 1996 JEEP XJ, YJ, TJ Dana 30 front

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $49.95

DANA SPICER 2-4-8091-1X

PINION YOKE - Strap and Bolt Style

Fits JEEP XJ, YJ, TJ with DANA 30 Front
- 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
Strap & Bolt style....Straps and Bolts sold separately ...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

image/jpeg

DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline Fits 1984 to 1996 JEEP XJ, YJ, TJ Dana 30 front

DANA SPICER 2-4-8091-1X Pinion Yoke Strap Style 1310 series 26 spline Fits 1984 to 1996 JEEP XJ, YJ, TJ Dana 30 front
