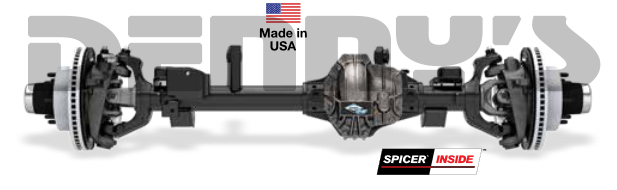

Ultimate Dana 60

Dana 60 Ultimate Builder Axle Parts for Jeep JK

Ring and Pinion Gear Sets

Part Number	Axle Model	Ratio	Rotation	Position
84676	Dana 256mm Super 60 Front	4.88	High Pinion Reverse Rotation	FRONT
84677	Dana 256mm Super 60 Front	5.38	High Pinion Reverse Rotation	FRONT
25334X	Dana 60 REAR	4.88	Low Pinion Standard Rotation	REAR
27518X	Dana 60 REAR	5.38	Low Pinion Standard Rotation	REAR

Axles - Chromoly

Part Number	Axle Model	Position
10004054	Dana 256mm Super 60 Front	FRONT RIGHT
10004053	Dana 256mm Super 60 Front	FRONT LEFT
10004851	Dana 60 REAR	REAR RIGHT
10003519	Dana 60 REAR	REAR LEFT

Axle U-Joint

Part Number	Photo	Axle Model	Description
SPL70-4X		Dana 256mm Super 60 Front	Greaseable axle universal joint

Differential E-Locker

Part Number	Axle Model	Description
10024012	Eaton E-Locker	Fits 4.56 and up with 35 spline axles
10021771	E-Locker wiring harness kit

Differential Cover

Part Number	Axle Model	Description	Position
10024011	Dana 256mm Super 60 Front	Nodular Iron with hardware and RTV	FRONT
10024090	Dana 60 Rear	Nodular Iron with hardware and performance gasket	REAR
47508-3	Dana 256mm Super 60 Front	Fits Front Nodular Iron Cover - 14 bolts required	FRONT
47508-2	Dana 60 Rear	Fits Rear Nodular Iron Cover - 10 bolts required	REAR
RD51999		Performance Gasket
43180		Drain Plug
2001762		Drain Plug

Knuckles, Tube Yoke, Steering Arm and Ball Joints

Part Number	Axle Model	Description	Position
708238	Dana 256mm Super 60 Front	Upper and Lower ball joint set for one side	Fits RIGHT and LEFT sides
2023567	Dana 256mm Super 60 Front	Knuckle assembly Kit	Fits LEFT side ONLY
2023568	Dana 256mm Super 60 Front	Knuckle assembly Kit	Fits RIGHT side ONLY
2023561	Dana 256mm Super 60 Front	Inner C tube yoke for 3.5 inch tube	Fits RIGHT and LEFT sides
10024009	Dana 256mm Super 60 Front	Steering arm Kit	Fits LEFT side ONLY
2008860	Dana 256mm Super 60 Front	Caster Camber Bushing for upper ball joint	Fits RIGHT and LEFT sides

Bearings, Seals, Shims, Baffles, Thrust Washers, Crush Sleeve, Bolts, Nuts, RTV

Part Number	Description	Fits	Notes
706045X	Pinion Outer Bearing Kit	FRONT / REAR	FRONT / REAR Kit includes roller bearing and race
706046X	Pinion Inner Bearing Kit	FRONT / REAR	Kit includes roller bearing and race
706047X	Differential Side Bearing Kit	FRONT / REAR	Kit includes (2) roller bearings and races
10024004	Master Bearing Kit	FRONT	FRONT KIT - includes bearings, seals, shims, thrust washers, RTV, ring gear bolts, pinion nut and washer, crush sleeve, baffle
10024089	Master Bearing Kit	REAR	REAR KIT - includes bearings, seals, shims, thrust washers, RTV, ring gear bolts, pinion nut and washer, baffle
2014762	Pinion Seal	FRONT
50637	Pinion Seal	REAR
30271	Pinion Nut	FRONT / REAR
30275	Pinion Washer	FRONT / REAR
42737	Pinion thrust washer	FRONT / REAR
30982	Pinion bearing baffle	FRONT
45658	Crush Sleeve	FRONT
703032	Pinion bearing SHIM Kit	FRONT
701007X	Diff Bearing SHIM Kit	FRONT
701144X	Diff Bearing SHIM Kit	REAR
40638	Ring Gear Bolt	FRONT / REAR	12 Bolts Required
38615	RTV

Hub Lock and Spindle - FRONT

Part Number	Photo	Axle Model	Description	Position
10024007		Dana 256mm Super 60 FRONT	Hub Lock Assembly KIT 35 spline	Fits RIGHT and LEFT sides
10024010		Dana 256mm Super 60 FRONT	Spindle Assembly KIT	Fits RIGHT and LEFT sides

Hub Lock and Wheel Bearing - REAR

Part Number	Photo	Axle Model	Description	Position
10024091		Dana 60 FRONT	Hub Lock Assembly KIT 35 spline	Fits RIGHT and LEFT sides
10024092		Dana 60 REAR	Inner Wheel Bearing KIT	Fits RIGHT and LEFT sides

Ultimate Dana 60 Crate Axle Bolt in Assembly

Part Number	Application	Ratio	Rotation	Position
10005578	2007 to 2014 Jeep Wrangler JK	4.88	High Pinion Reverse Rotation	FRONT
10005577	2007 to 2014 Jeep Wrangler JK	5.38	High Pinion Reverse Rotation	FRONT
2023612-1	2007 to 2014 Jeep Wrangler JK	4.88	Low Pinion Standard Rotation	REAR
10005942	2007 to 2014 Jeep Wrangler JK	5.38	Low Pinion Standard Rotation	REAR

DANA 60 JK Ultimate Builder Parts

AXLES

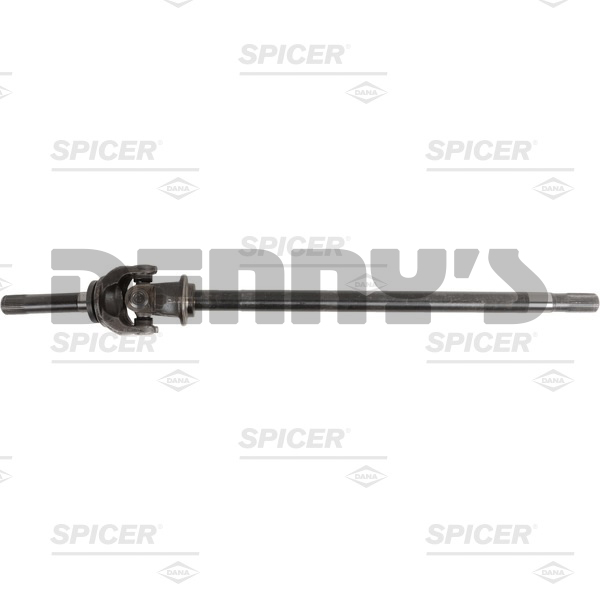

	Dana Spicer 10004054 Chromoly Axle Shaft fits RIGHT side Dana Super 60 Jeep JK Builder Axle CLICK HERE for More Details Part Number: 10004054	~~$295.73~~ $279.65	IN STOCK FREE SHIPPING

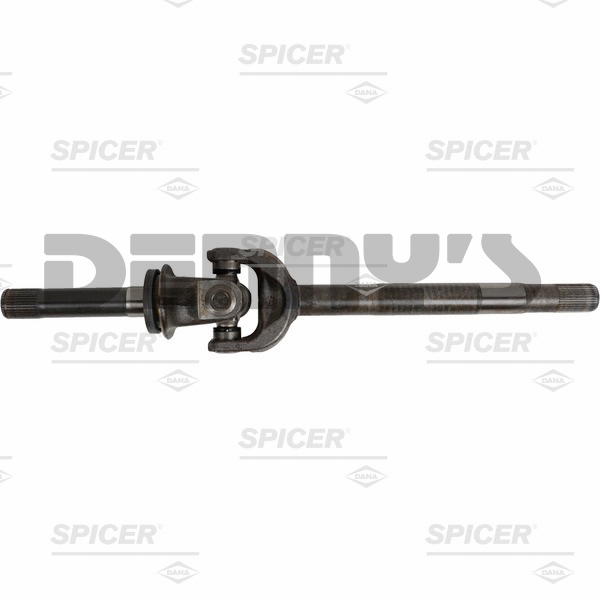

	Dana Spicer 10004053 Chromoly Axle Shaft fits LEFT side Dana Super 60 Jeep JK Builder Axle CLICK HERE for More Details Part Number: 10004053	~~$325.49~~ $310.95	IN STOCK FREE SHIPPING

	DANA SPICER SPL70-4X Axle U-Joint SPL70WJ series fits Ultimate Dana 60 axle shafts CLICK HERE for More Details Part Number: SPL70-4X	$114.95	IN STOCK

BEARINGS

	Dana Spicer 10024089 Master Bearing Kit fits Ultimate Dana 60 REAR 2007 to 2018 Jeep JK Wrangler CLICK HERE for More Details Part Number: 10024089	$180.48	SOLD OUT

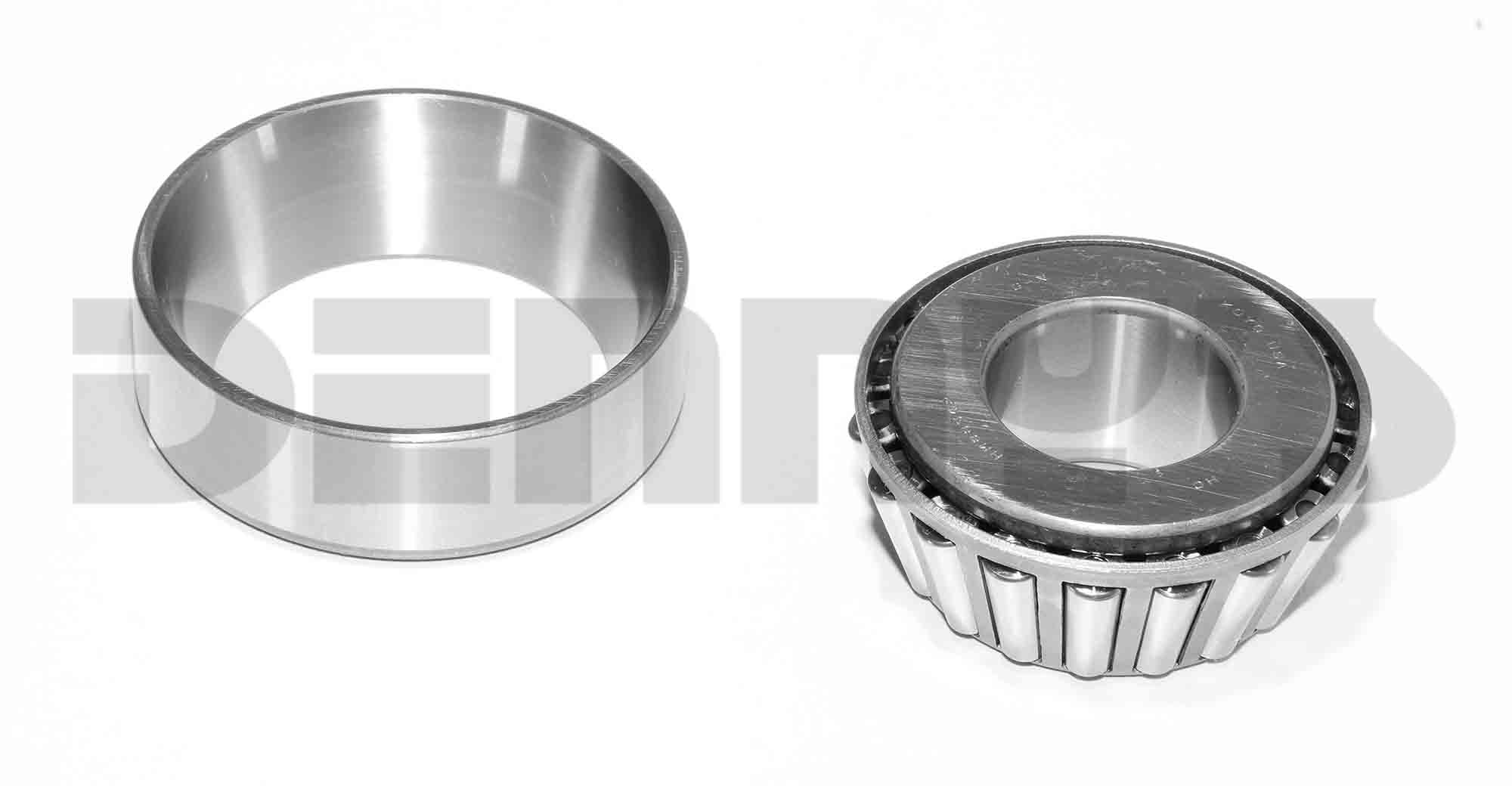

	DANA SPICER 706045X Bearing Kit includes HM88510 and HM88542 CLICK HERE for More Details Part Number: 706045X	$32.95	IN STOCK

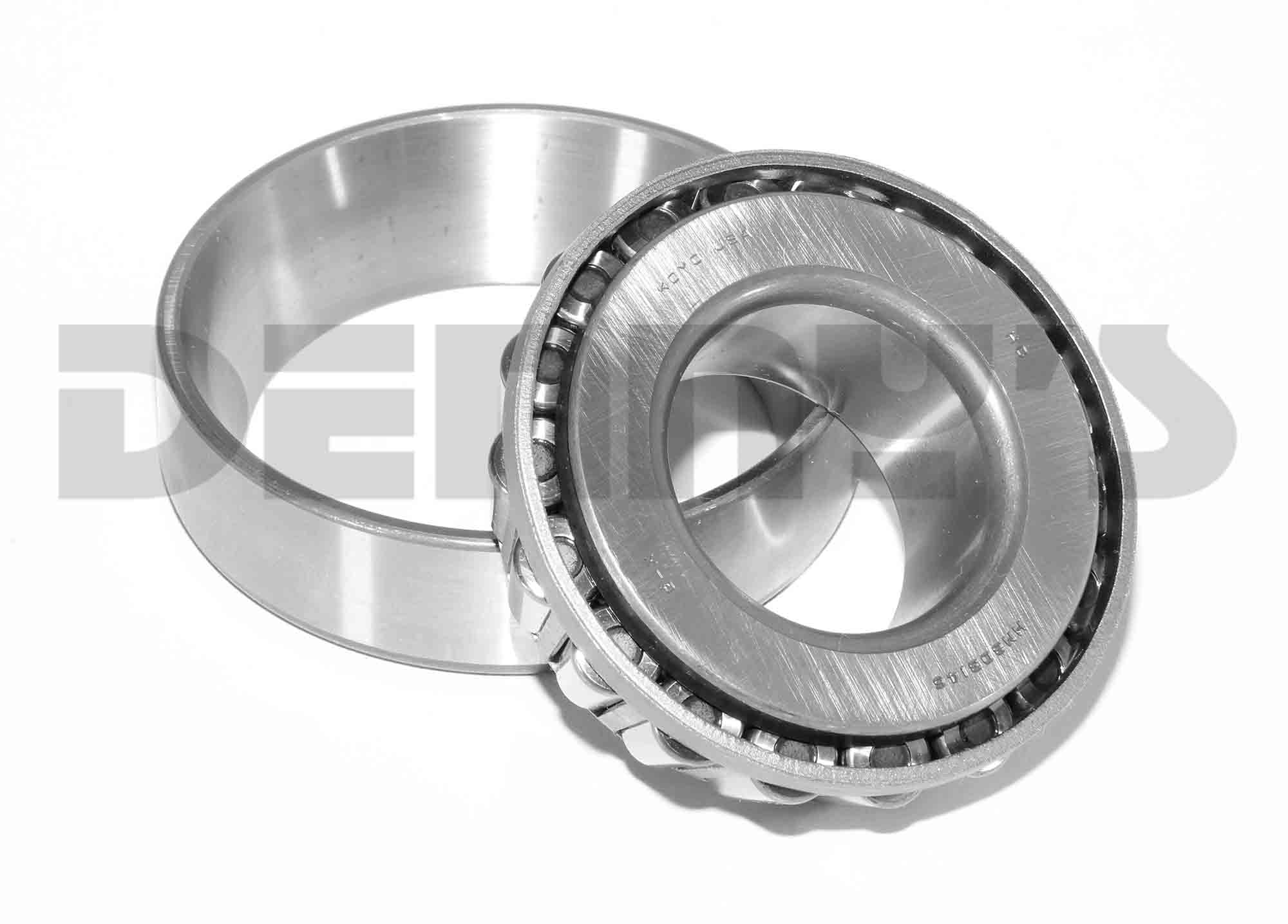

	DANA SPICER 706046X Bearing Kit includes HM803110 and HM803146 CLICK HERE for More Details Part Number: 706046X	$42.79	IN STOCK

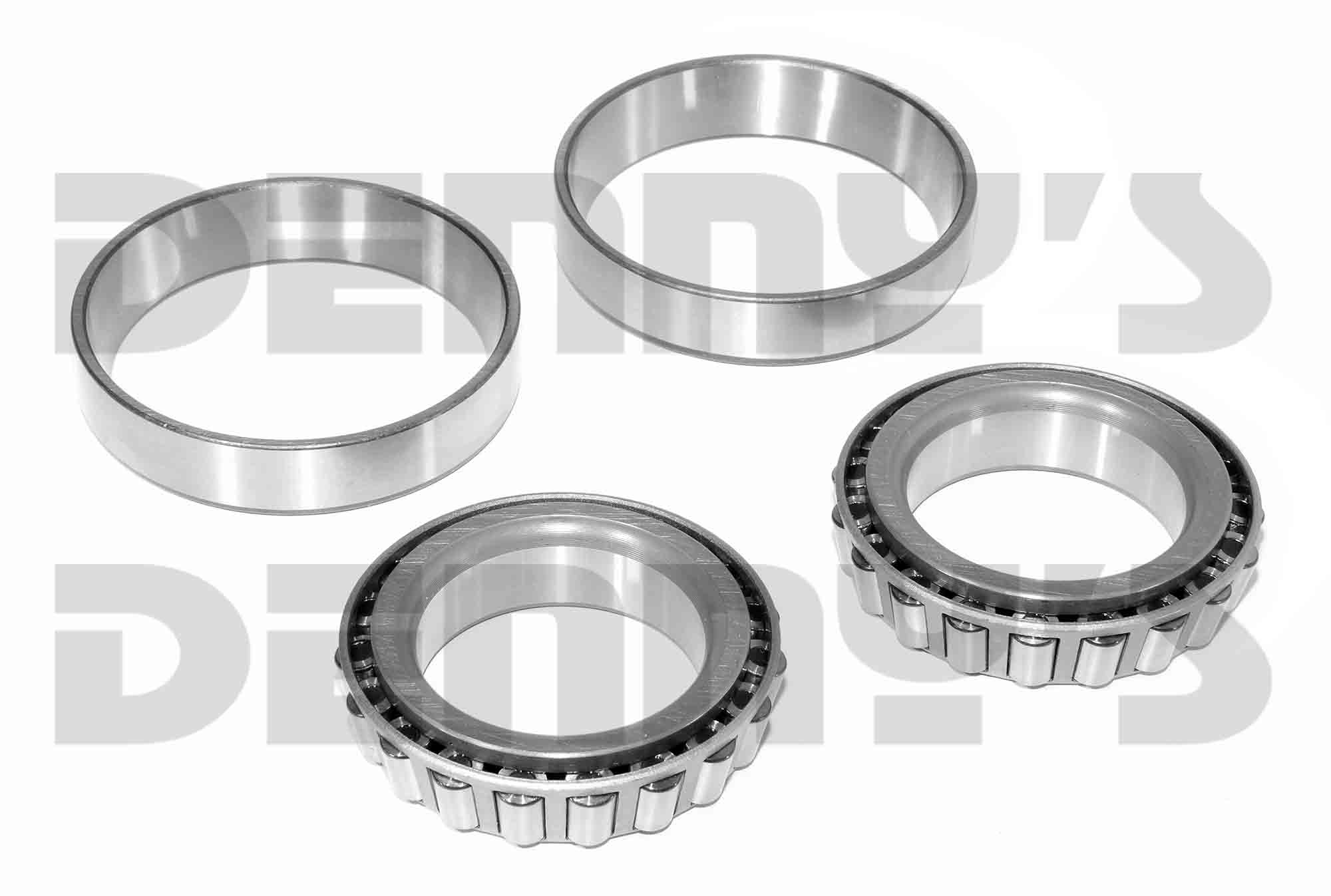

	DANA SPICER 706047X Bearing Kit includes (2) 382S and (2) 387A CLICK HERE for More Details Part Number: 706047X	$89.91	IN STOCK

	Dana Spicer 10024092 Inner wheel bearing kit for Ultimate Dana 60 REAR CLICK HERE for More Details Part Number: 10024092	~~$64.25~~ $57.19	IN STOCK

DIFFERENTIAL PARTS

	Dana Spicer 10020923 ABS Wheel Speed Sensor - REAR Ultimate Dana 60 for Jeep Wrangler JK and JKU 2007-2018 CLICK HERE for More Details Part Number: 10020923	$62.59	IN STOCK

	Dana Spicer 47508-3 Diff Cover BOLT .375-16 fits Nodular Iron diff cover Ultimate Dana 60 Front CLICK HERE for More Details Part Number: 47508-3	$0.15	IN STOCK

	Dana Spicer 50637 pinion seal CLICK HERE for More Details Part Number: 50637	$11.95	IN STOCK

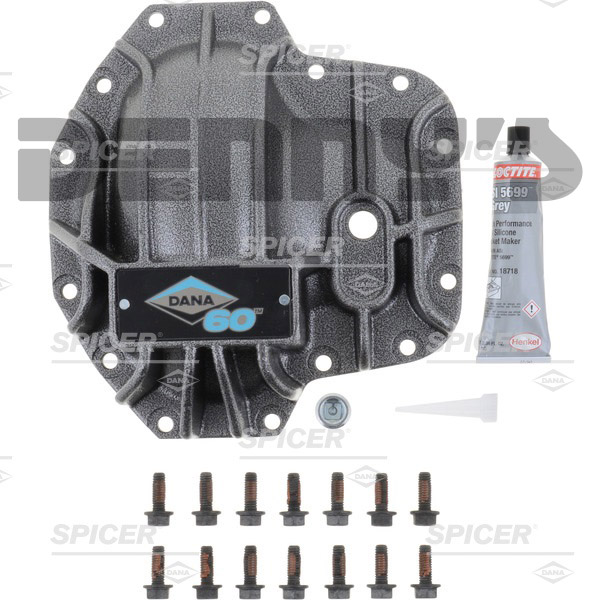

	Dana Spicer 10024011 Nodular Iron Diff COVER for Ultimate Dana 60 FRONT comes with bolts, fill plug and RTV sealer CLICK HERE for More Details Part Number: 10024011	$305.95	IN STOCK FREE SHIPPING

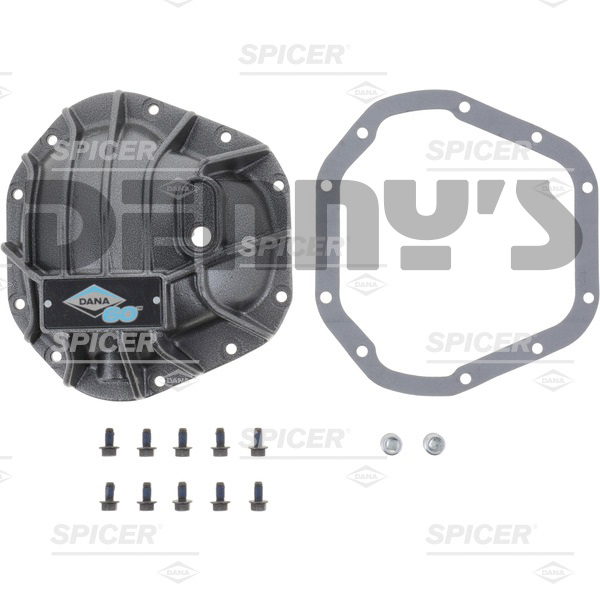

	Dana Spicer 10024090 Nodular Iron Gray powdercoat Diff Cover Kit fits Front/Rear Dana 60 fits 1954 to 2018 CLICK HERE for More Details Part Number: 10024090	$195.95	IN STOCK FREE SHIPPING

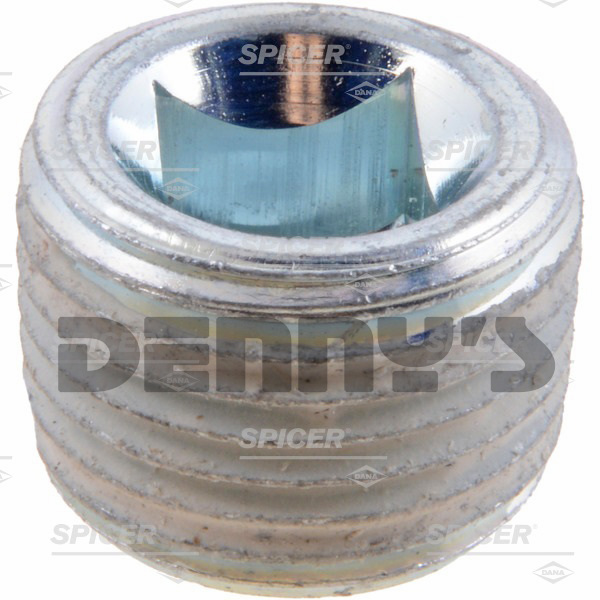

	Dana Spicer 43180 Plug for Differential Cover CLICK HERE for More Details Part Number: 43180	$4.95	IN STOCK

	Dana Spicer 10024004 Ultimate Dana 60 Front differential rebuild kit CLICK HERE for More Details Part Number: 10024004	$185.95	IN STOCK FREE SHIPPING

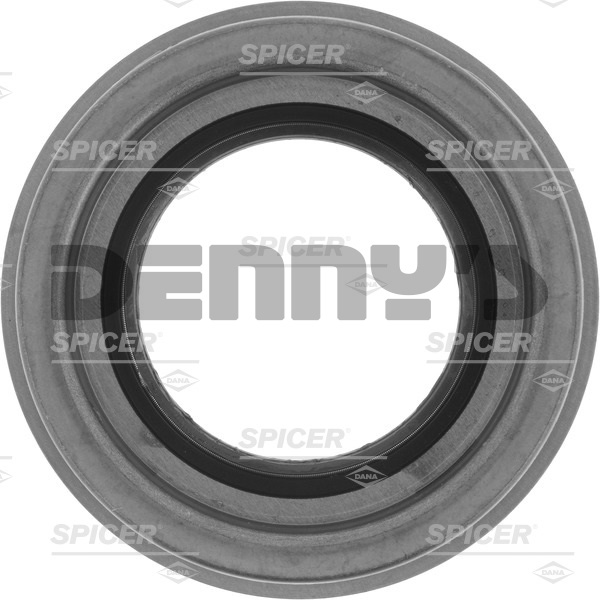

	Dana Spicer 2014762 Pinion Seal for 2007 to 2018 Wrangler with Ultimate Dana 60 front axle CLICK HERE for More Details Part Number: 2014762	$9.32	IN STOCK

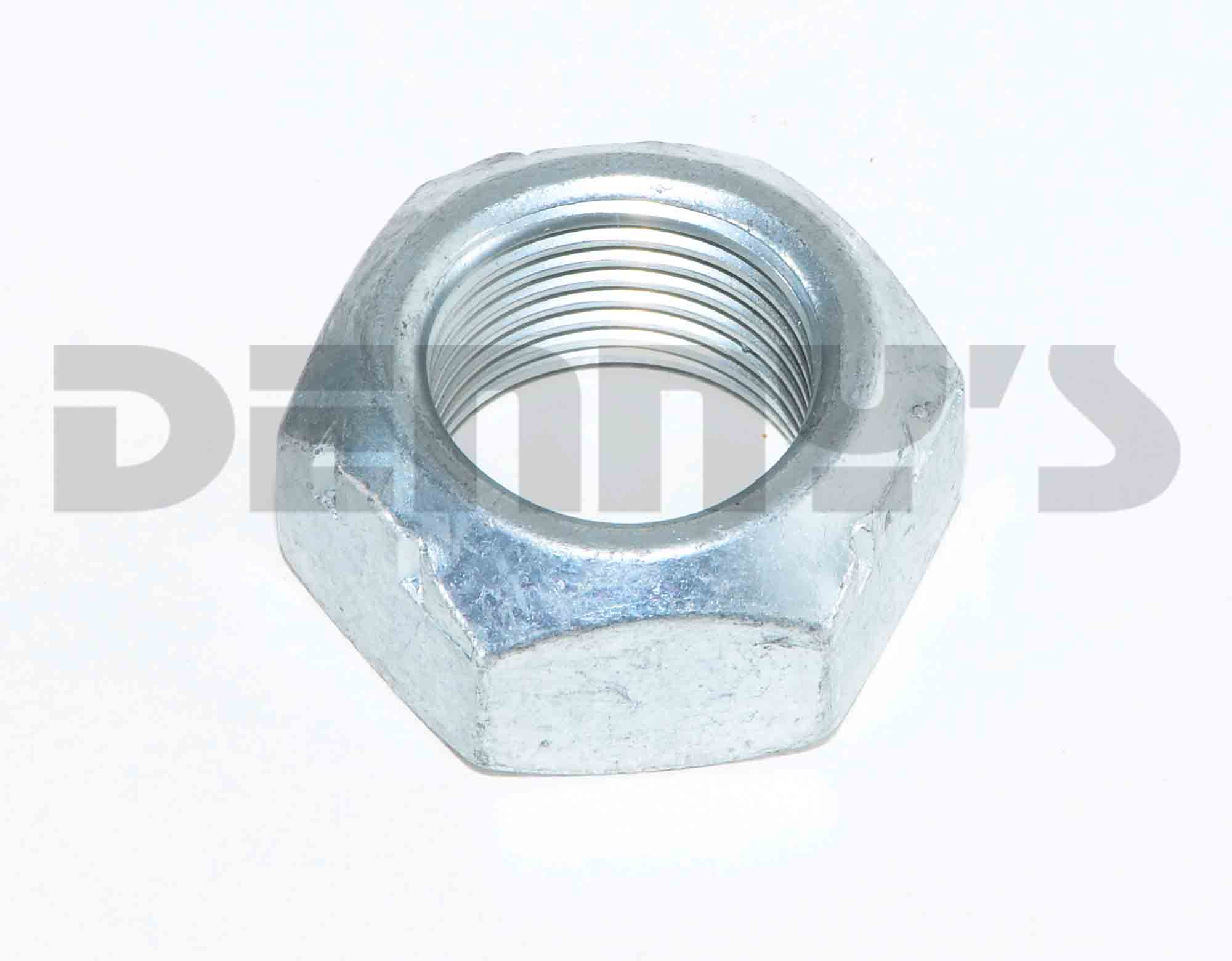

	Dana Spicer 30271 Pinion Nut for DANA 60 CLICK HERE for More Details Part Number: 30271	$0.95	IN STOCK

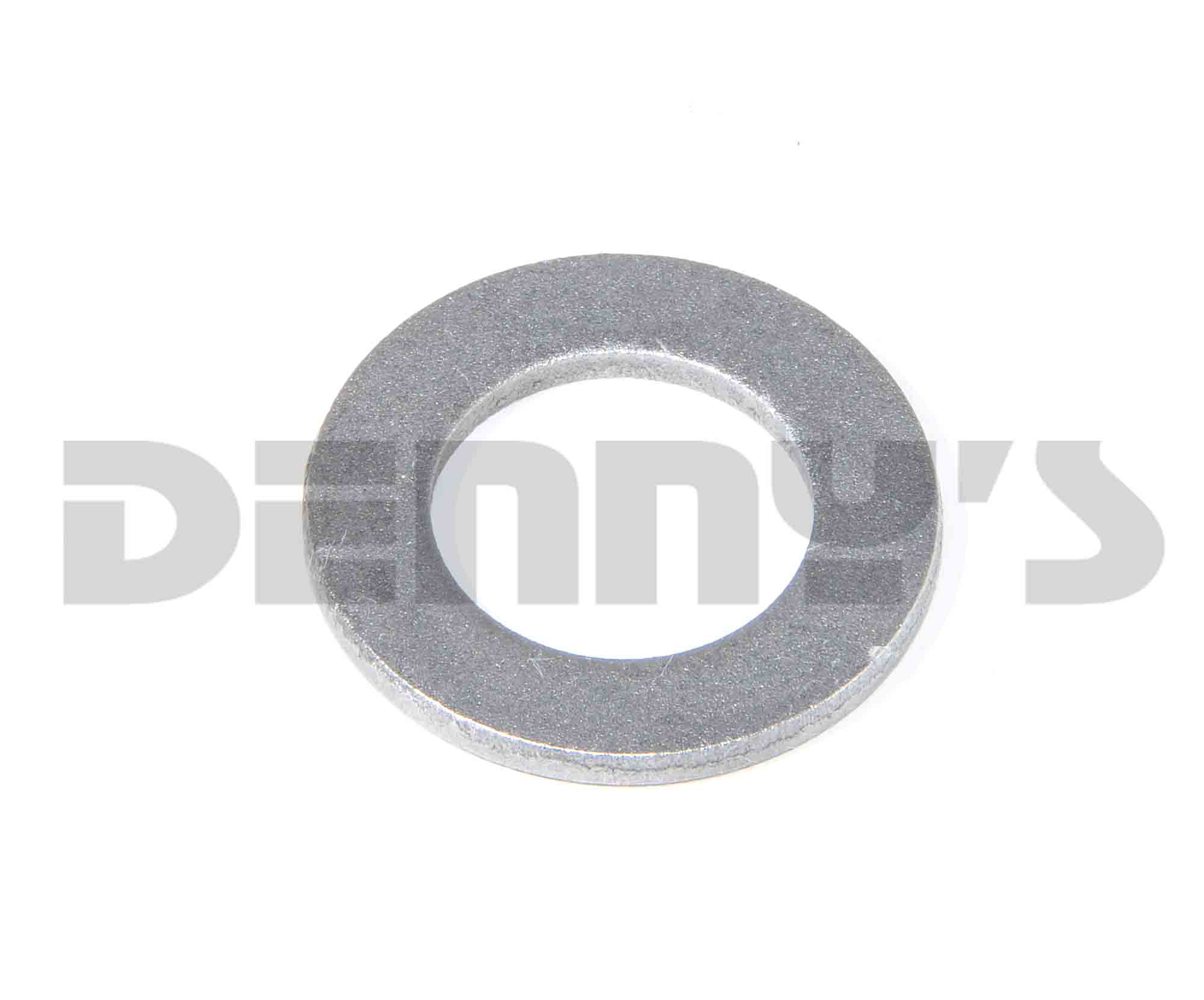

	Dana Spicer 30275 Pinion Washer for DANA 60 CLICK HERE for More Details Part Number: 30275	$0.45	IN STOCK

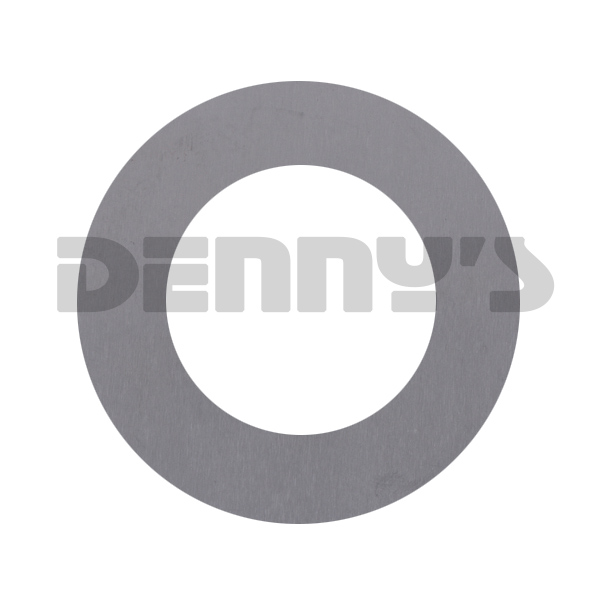

	Dana Spicer 42737 THRUST WASHER 2.250 inch OD for Outer Pinion Bearing for DANA 60, 61, 70 front or rear CLICK HERE for More Details Part Number: 42737	$2.95	IN STOCK

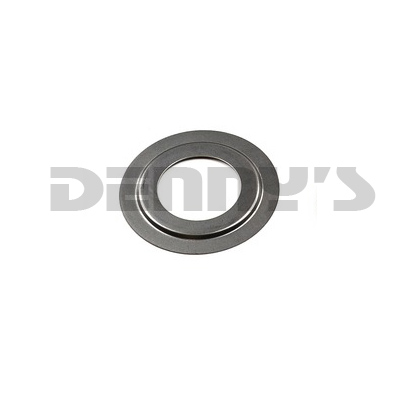

	Dana Spicer 30982 Baffle 3.480 inch OD for Inner Pinion Bearing Dana 60, 61 front and rear ends CLICK HERE for More Details Part Number: 30982	$3.75	IN STOCK

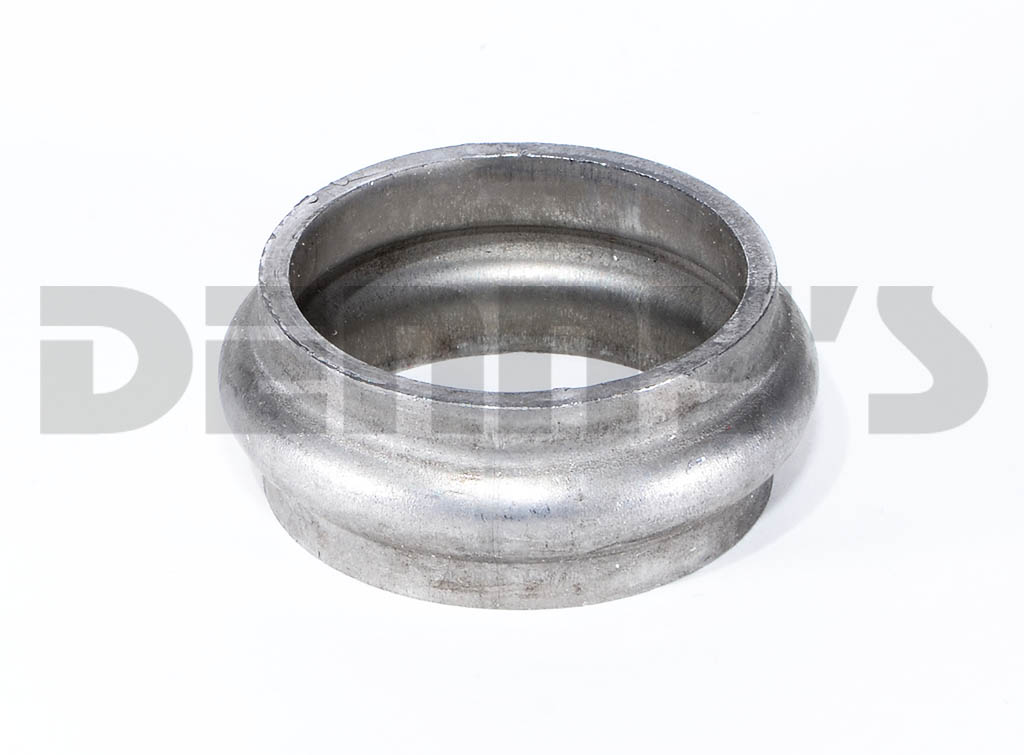

	Dana Spicer 45658 Dana 60 and SUPER 60 Crush Sleeve / Collapsable Spacer FORD F-250, F-350, F-450, F-550 from 1999 to 2011 CLICK HERE for More Details Part Number: 45658	$3.35	IN STOCK

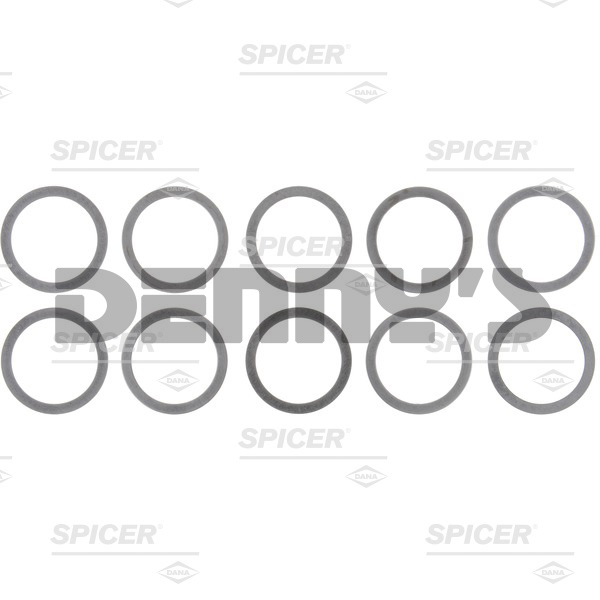

	Dana Spicer 703032 SHIM Kit for INNER pinion bearing Dana 60 CLICK HERE for More Details Part Number: 703032	$32.48	IN STOCK

	Dana Spicer 701007X shim kit for Dana 60, 61, 70 diff carrier bearings 2.937 OD various thickness from 0.003 to 0.030 in. CLICK HERE for More Details Part Number: 701007X	$10.95	IN STOCK

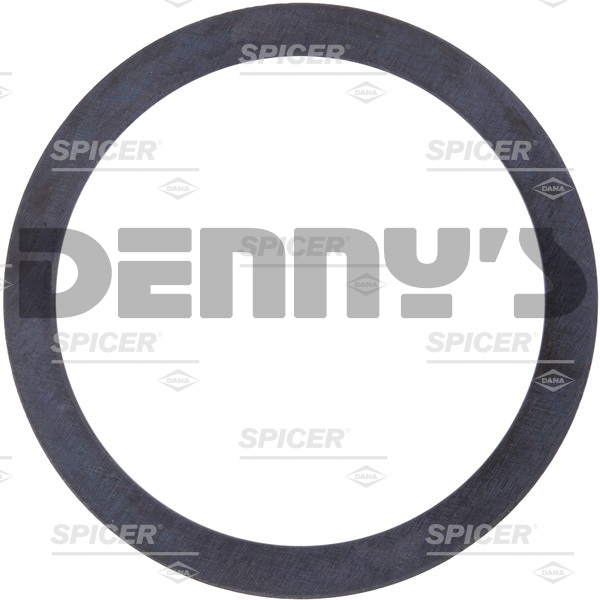

	Dana Spicer 701144X CLICK HERE for More Details Part Number: 701144X	$11.60	IN STOCK

	Dana Spicer 40638 RING GEAR BOLT 1/2-20 RH Grade 8 hex head fits Dana 60, 61, 70, 70U, 70HD front and rear ends CLICK HERE for More Details Part Number: 40638	$0.45	IN STOCK

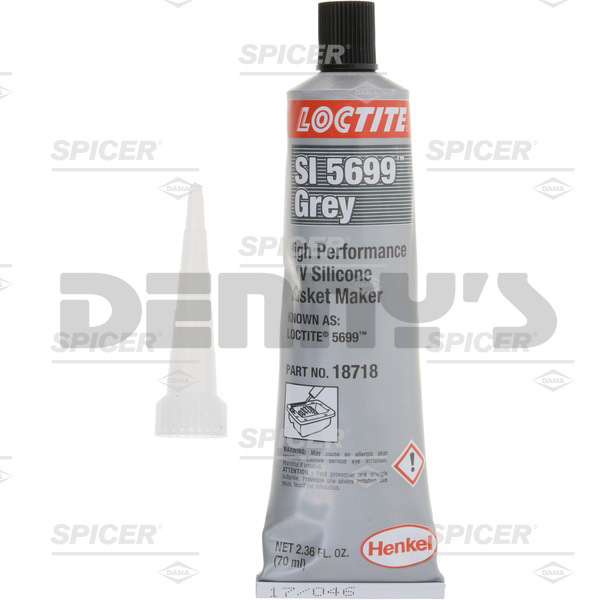

	Dana Spicer 38615 Loctite SI 5699 Gasket Maker Sealer replaced by 70-31414-10 REINZOSIL RTV Silicone Gasket Maker CLICK HERE for More Details Part Number: 38615	$7.65

HUB and SPINDLE

	Dana Spicer 2023569 Spindle CLICK HERE for More Details Part Number: 2023569	~~$107.68~~ $90.18	IN STOCK FREE SHIPPING

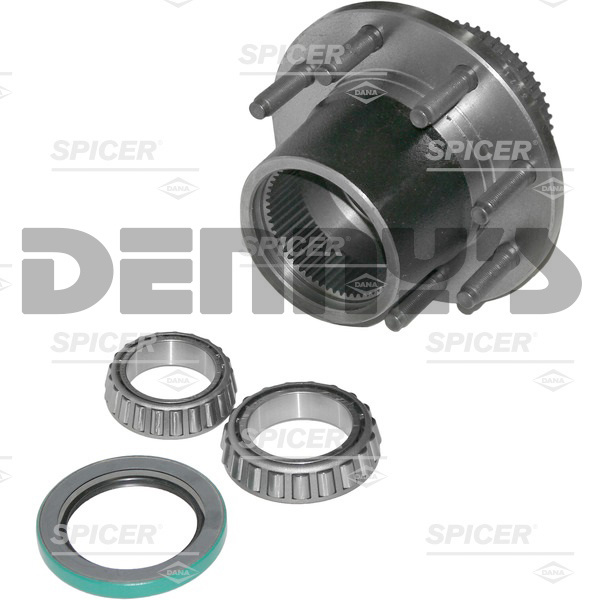

	Dana Spicer 10024007 Front Hub assembly with bearings, seal, studs and ABS tone ring for Ultimate Dana 60 CLICK HERE for More Details Part Number: 10024007	~~$479.18~~ $401.32	SOLD OUT

	Dana Spicer 10024010 Disc Brake SPINDLE Assembly fits Ultimate Dana 60 Front CLICK HERE for More Details Part Number: 10024010	$595.95

	Dana Spicer 10024091 wheel bearing and hub assembly CLICK HERE for More Details Part Number: 10024091	$320.95

KNUCKLE PARTS

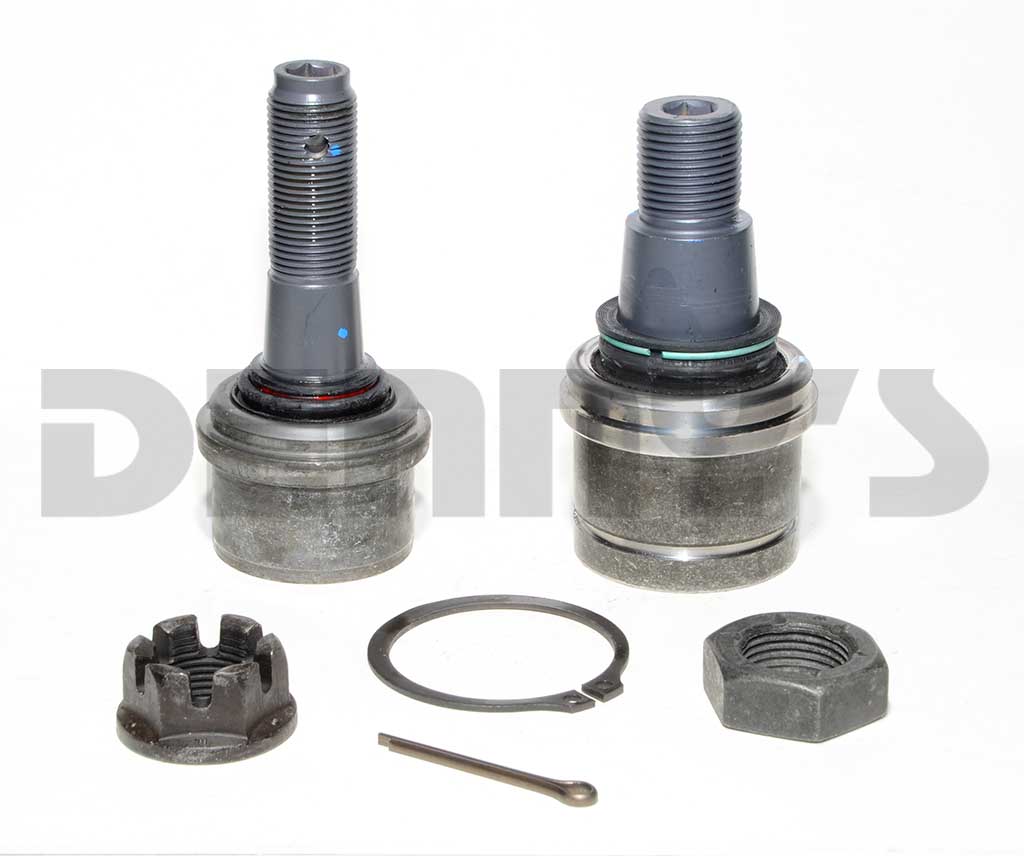

	Dana Spicer 708238 BALL JOINT SET CLICK HERE for More Details Part Number: 708238	$85.95	IN STOCK

	Dana Spicer 2023567 Steering Knuckle fits Ultimate Dana 60 FRONT LEFT Side drivers side includes ball joints and spindle studs CLICK HERE for More Details Part Number: 2023567	$319.95

	Dana Spicer 2023568 Steering Knuckle fits Ultimate Dana 60 FRONT RIGHT Side passenger side includes ball joints and spindle studs CLICK HERE for More Details Part Number: 2023568	$305.95

	Dana Spicer 2023561 Inner Knuckle C weld on tube yoke for Ultimate Dana 60 front Jeep JK builder axle part CLICK HERE for More Details Part Number: 2023561	$220.95	SOLD OUT

	Dana Spicer 10024009 Steering ARM Kit fits Ultimate Dana 60 FRONT CLICK HERE for More Details Part Number: 10024009	~~$220.95~~ $197.77	IN STOCK FREE SHIPPING

	Dana Spicer 2008860 Adjuster Bushing for upper ball joint CLICK HERE for More Details Part Number: 2008860	$10.55	IN STOCK

RING AND PINION GEAR SETS

FRONT

	Dana Spicer 84676 Ring and Pinion Gear Set 4.88 ratio fits Ultimate Dana 60 FRONT Reverse Rotation Gears for HIGH PINION FRONT CLICK HERE for More Details Part Number: 84676	$475.95	SOLD OUT

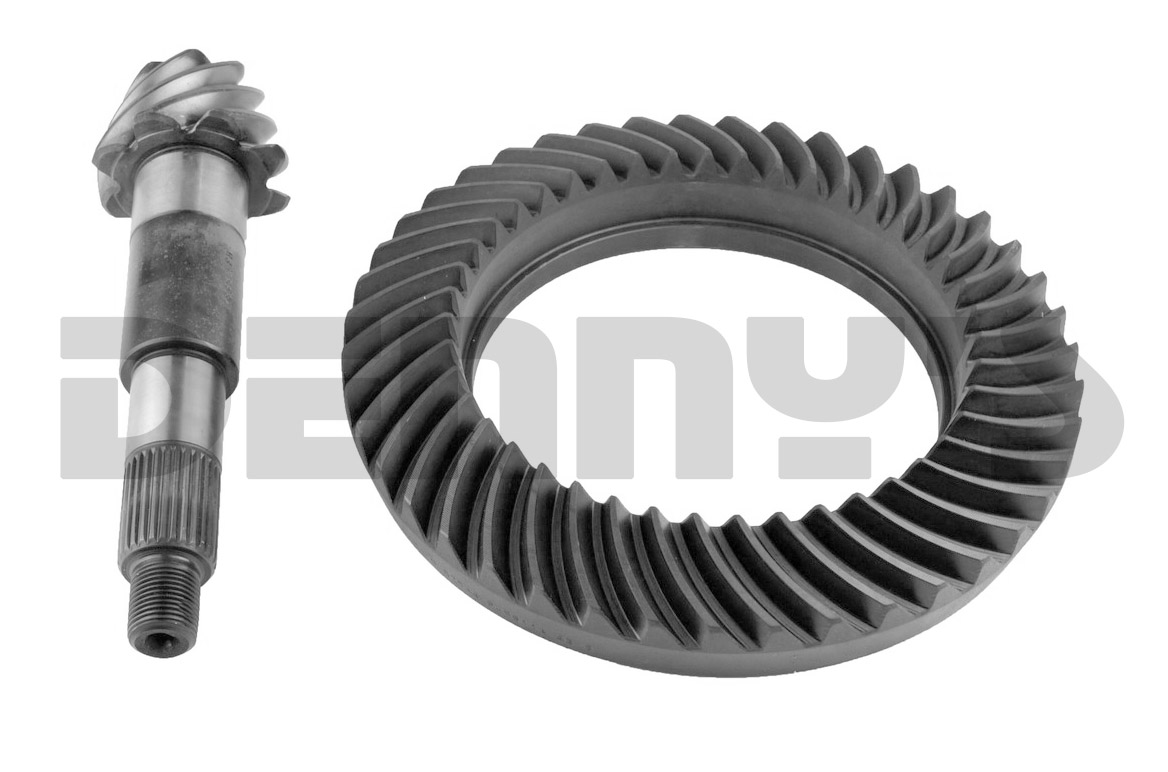

	DANA SPICER 84677 Ring and Pinion Gear Set 5.38 Ratio (43-08) REVERSE ROTATION for HIGH Pinion Ultimate DANA 60 front - FREE SHIPPING CLICK HERE for More Details Part Number: 84677	$329.40	SOLD OUT

REAR

	Dana Spicer 25334X Ring and Pinion GEAR SET 4.88 ratio fits Ultimate Dana 60 standard rotation REAR end CLICK HERE for More Details Part Number: 25334X	$328.60	IN STOCK FREE SHIPPING

	Dana Spicer 27518X Ring and Pinion GEAR SET 5.38 Ratio fits Ultimate Dana 60 standard rotation REAR end CLICK HERE for More Details Part Number: 27518X	$339.78	IN STOCK FREE SHIPPING
