Neapco N6-1-1253-5 Companion Flange 1610 series 3.000 bore 0.750 keyway 7.250 bolt circle 7.750 pilot

Part Number:
N6-1-1253-5

UPC:

083869014555

Your Cost $355.95

STATUS: FACTORY DIRECT TO YOU

Neapco N6-1-1253-5

Companion Flange - 3.00 inch round bore with 0.750 inch keyway

Dimensions - See Figure 1

Driveline Series: 1610/1710
Flange Type: Standard
- A- Outside Diameter (In):8.000
- B- Bolt Circle (In): 7.250
  - Hole Diameter (In): 0.391 drilled
  - Number Of Bolt Holes: 8
- C- Pilot Diameter (In): 7.750 F
- P - Round Bore Dia. (In): 3.000
  - Keyway Width (In): 0.750
Overall Length (In): 4.000
Set Screw Hole Size/Thread (In): 0.500-13

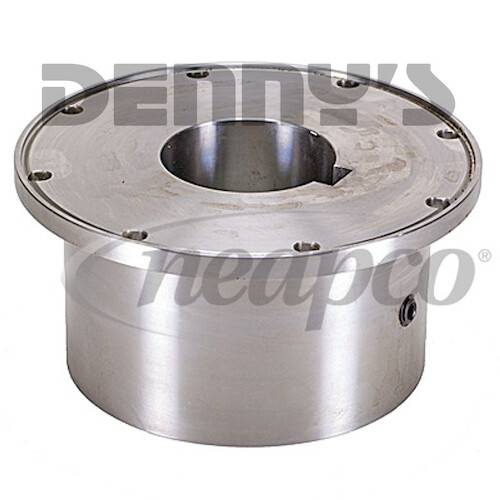

Neapco N6-1-1253-5 Companion Flange 1610 series 3.000 bore 0.750 keyway 7.250 bolt circle 7.750 pilot

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT TO YOU

YOUR COST: $355.95

>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Neapco N6-1-1253-5

Companion Flange - 3.00 inch round bore with 0.750 inch keyway

Dimensions - See Figure 1

Driveline Series: 1610/1710
Flange Type: Standard
- A- Outside Diameter (In):8.000
- B- Bolt Circle (In): 7.250
  - Hole Diameter (In): 0.391 drilled
  - Number Of Bolt Holes: 8
- C- Pilot Diameter (In): 7.750 F
- P - Round Bore Dia. (In): 3.000
  - Keyway Width (In): 0.750
Overall Length (In): 4.000
Set Screw Hole Size/Thread (In): 0.500-13

Compatible Flange Yokes - select from choices at bottom of this page

1610 series
- 5-2-629
- 5-2-619
1710 series
- 6-2-769
- 6-2-749-1
- 6-2-749
- N6-2-749
- 6-2-959
- 6-2-1239

Neapco N6-1-1253-5 Companion Flange 1610 series 3.000 bore 0.750 keyway 7.250 bolt circle 7.750 pilot
