Neapco N6-1-1253-7 Companion Flange 1710 series 3.938 bore 1.000 keyway 7.250 bolt circle 7.750 pilot

Part Number:
N6-1-1253-7

UPC:

083869014579

Your Cost $331.41

STATUS: FACTORY DIRECT TO YOU

Neapco N6-1-1253-7

Companion Flange - 3.938 inch round bore with 1.000 inch keyway

Dimensions - See Figure 1

Driveline Series: 1710
Flange Type: Standard
- A- Outside Diameter (In):8.000
- B- Bolt Circle (In): 7.250
  - Hole Diameter (In): 0.391 drilled
  - Number Of Bolt Holes: 8
- C- Pilot Diameter (In): 7.750 F
- P - Round Bore Dia. (In): 3.938
  - Keyway Width (In): 1.000
Overall Length (In): 4.000
Set Screw Hole Size/Thread (In): 0.500-13

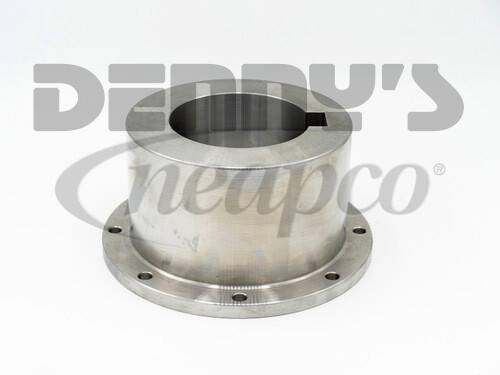

Neapco N6-1-1253-7 Companion Flange 1710 series 3.938 bore 1.000 keyway 7.250 bolt circle 7.750 pilot

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: FACTORY DIRECT TO YOU

YOUR COST: $331.41

>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Neapco N6-1-1253-7

Companion Flange - 3.938 inch round bore with 1.000 inch keyway

Dimensions - See Figure 1

Driveline Series: 1710
Flange Type: Standard
- A- Outside Diameter (In):8.000
- B- Bolt Circle (In): 7.250
  - Hole Diameter (In): 0.391 drilled
  - Number Of Bolt Holes: 8
- C- Pilot Diameter (In): 7.750 F
- P - Round Bore Dia. (In): 3.938
  - Keyway Width (In): 1.000
Overall Length (In): 4.000
Set Screw Hole Size/Thread (In): 0.500-13

Compatible Flange Yokes - select from choices at bottom of this page

1610 series
- 5-2-629
- 5-2-619
1710 series
- 6-2-769
- 6-2-749-1
- 6-2-749
- N6-2-749
- 6-2-959
- 6-2-1239

Neapco N6-1-1253-7 Companion Flange 1710 series 3.938 bore 1.000 keyway 7.250 bolt circle 7.750 pilot
